1550nm High Power Fiber AOM Series
An acousto-optic modulator is a product utilizing the principle of acousto-optic interaction to modulate laser intensity and alter frequency. Operating within wavelengths spanning from visible to infrared, it offers optional frequency ranges from 80-300MHz, with customizable options for other frequencies. Designed to withstand high-power optical inputs up to 5W (adjustable), it caters to diverse application requirements. Featuring an all-metal structure design and a compact, durable sealing package, along with innovative packaging technology, the product guarantees high reliability and temperature stability.
Characteristics of 1550nm High Power Fiber AOM Series
- Short response time
- Low insertion loss
- High extinction ratio
- High-temperature stability and reliability
- Small size
Applications of 1550nm High Power Fiber AOM Series
- Q-switched fiber laser
- Laser Doppler coherent application
- Ultra-fast laser frequency reduction menu
- Linear frequency modulation
Ordering Information of 1550nm High Power Fiber AOM Series
This indicator is a typical optical wavelength indicator, and other wavelengths and frequencies can be selected.
| Parameter | Unit | Single mode fiber is represented by “1”, and single mode polarization maintaining fiber is represented by “1P”. | ||||
| SGTF80-1550-1(S)-HP5 | SGTF120-1550-1FG | SGTF150-1550-1FG | SGTF200-1550-1FG | SGTF300-1550-1FG | ||
| SGTF80-1550-1P(S)-HP5 | SGTF120-1550-1PFG | SGTF150-1550-1PFG | SGTF200-1550-1PFG | SGTF300-1550-1PFG | ||
| Insertion loss | dB | <2.5 | <2.5 | <3.5 | <4.5 | <5 |
| Rise time | ns | <300 | <45 | < 20 | <12 | <10 |
| shift frequency | MHz | 80 | 120 | 150 | 200 | 300 |
| 3dB frequency shift bandwidth | MHz | >15 | >20 | >30 | >40 | >60 |
| Wavelength | nm | 1530-1570 | ||||
| Optical power | W | ≤5W | ||||
| On-off extinction ratio | dB | ≥50 | ||||
| Polarization extinction ratio (PM device) | dB | ≥20 | ||||
| Polarization dependent loss (SM device) | dB | <0.5 | ||||
| Driving power | W | <2 | ||||
| Fiber type | – | PM1550(PM) 、SMF28e(SM) or others | ||||
| Optical fiber connector | – | FC/APC | ||||
| RF input joint | – | SMA | ||||
| Fiber length | m | >1 | ||||
| Input impedance | Ω | 50 | ||||
| VSWR | – | <1.3:1 | ||||
| Package | – | FA | FG | |||

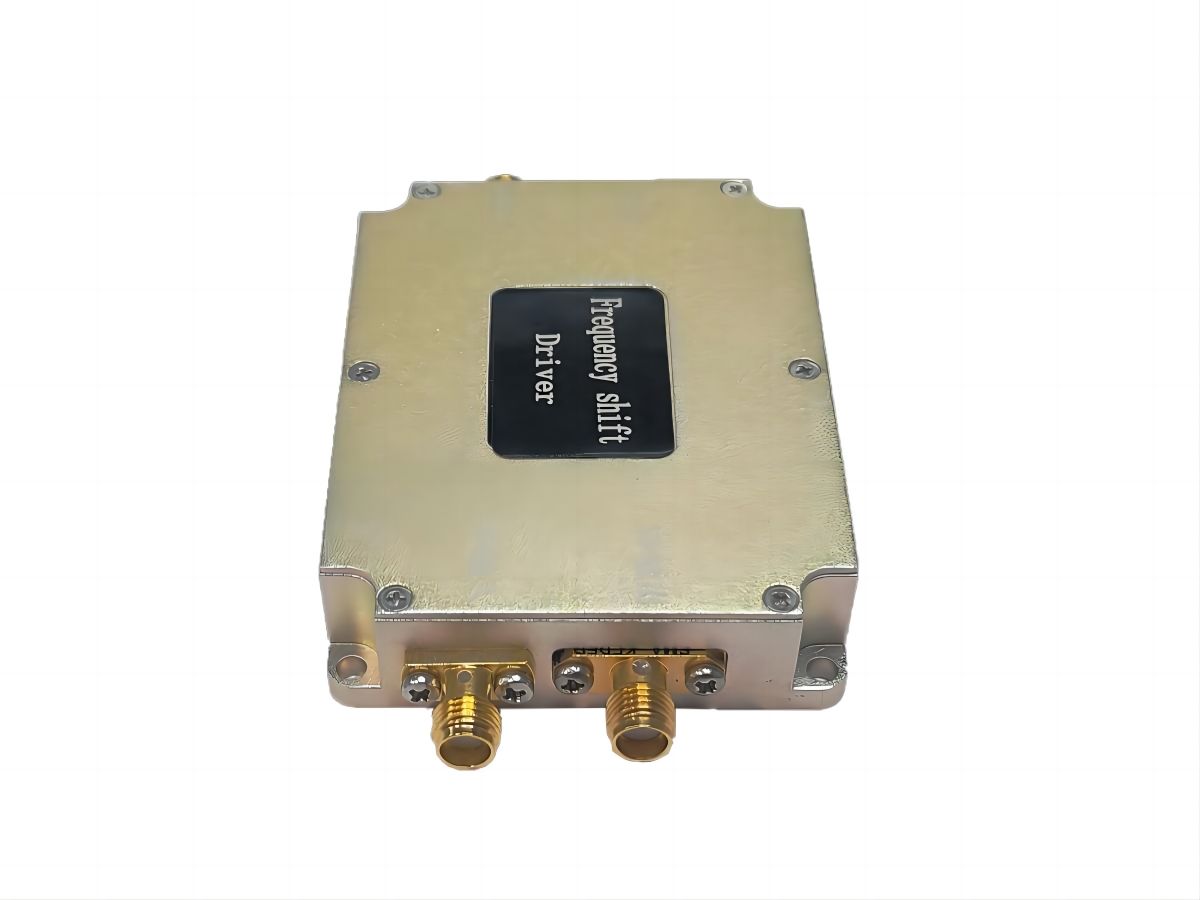

Low-power N-type Acousto Optic Driver for 550nm High Power Fiber AOM Series
An acousto-optic driver serves as a dedicated radio frequency (RF) signal generator crafted for propelling acousto-optic devices, boasting an approximate output power of 3W. This driver initiates an RF signal stimulating ultrasonic waves within the modulator’s crystal, thereby altering the refractive index of the acousto-optical medium, consequently influencing beam characteristics. The frequency and intensity of the RF signal directly impact the beam’s intensity, deflection angle, or tuning degree. The driver ensures reliable performance and is equipped with efficient heat dissipation capabilities and temperature stability.
| Supporting Drive | The model (SGXXXX-33-N-ab) denotes certain functionalities: “Y” for frequency shift function and “T” for modulation function; “XXX” signifies the operating frequency, where “33” indicates the RF output power; “N” designates the package type; “A” corresponds to power supply voltage 24V, while “2” signifies power supply voltage 12V; and “b” use “D” for digital TTL modulation and “A” for analog modulation. | ||||||
| SGT80-33-N-1D SGT80-33-N-1A1 SGT80-33-N-1A5 | SGT120-33-N2-1D SGT120-33-N2-1A1 SGT120-33-N2-1A5 | SGT150-33-N2-1D SGT150-33-N2-1A1 SGT150-33-N2-1A5 | SGT200-33-N-1D SGT200-33-N-1A1 SGT200-33-N-1A5 | SGT300-33-N2-1D SGT300-33-N2-1A1 SGT300-33-N2-1A5 | |||
Performance of Low-power N-type Acousto Optic Driver on High Power Fiber AOM
- Small size
- Fast response time
- Low power consumption
- High-temperature stability and reliability
| Item | Unit | Performance | ||||
| Modulated signal input | – | Digital modulation (high level 3.3-5V; low level 0-0.2V@ 1k Ω) Analog modulation (A1: 0-1V@50 Ω) Analog modulation (A5: 0-5V@ 1k Ω) | ||||
| Interface | – | SMA | ||||
| RF output interface specification | ||||||
| Output signal frequency | MHz | 80 | 120 | 150 | 200 | 300 |
| Frequency stability | ppm | 20 ( 1 Special) | ||||
| Output signal power | W | ＜2 | ||||
| Rise and fall time | ns | <25 | <25 | <20 | <10 | <8 |
| Switching ratio | dB | ≥60 | ||||
| Harmonic suppression ratio | dBc | >25 | ||||
| Signal output standing wave ratio | – | ≤1.3 | ||||
| Interface | – | SMA | ||||
| Complete machine specification | ||||||
| Maximum power consumption | W | 10 | ||||
| Working voltage | Vdc | 24±1V（Optional 12±0.5V） | ||||
| Power interface | – | Through core capacitance (core wire is connected to positive, solder lug is connected to negative) | ||||
| Package | – | N/N2 | ||||
