2μm Acousto-optic Q-switch Series
The acousto-optic Q switch realizes the Q switch of the 2μm laser cavity by the principle of acousto-optic interaction. High intensity pulsed light is generated by actively controlling the quality factor Q (loss) in the cavity. The use of unique acousto-optic device manufacturing and packaging technology ensures that our products are robust and compact, with stable beam quality and excellent heat dissipation performance. It is widely used in high repetition frequency Q-switched laser, laser cutting, laser engraving, and other fields.
Characteristics of 2μm Acousto-optic Q-switch Series
- High repetition rate
- High diffraction efficiency
- High temperature stability and reliability
- High damage threshold
Application of 2μm Acousto-optic Q-switch Series
- Laser marking, cutting, engraving
- Laser ranging
- Laser medical treatment
Ordering Information of 2μm Acousto-optic Q-switch Series
This indicator is a typical optical wavelength indicator, and other wavelengths and frequencies can be selected.
| Parameter | Unit | SGQ41-2000-1QC | SGQ41-2000-2QB | SGQ27-2000-3QI |
| Wavelength | nm | 1900-2100 | ||
| Polarization state of input light | – | Linear polarization(⊥) | ||
| Center frequency | MHz | 40.68 | 27 | |
| Diffraction efficiency | % | ≥65 | ≥80 | ≥70 |
| Optical aperture | mm | 1 | 2 | 3 |
| Drive power | W | 20 | 40 | 50 |
| Damage threshold | W/cm2 | 1G | ||
| Static transmissivity | % | 99 | ||
| RF connector | – | 20cm cable with SMA female connector | SMA female connector | |
| Input impedance | Ω | 50 | ||
| VSWR | – | ＜1.3：1 | ||
| Cooling mode | – | Conduction cooling | Water-cooling | |

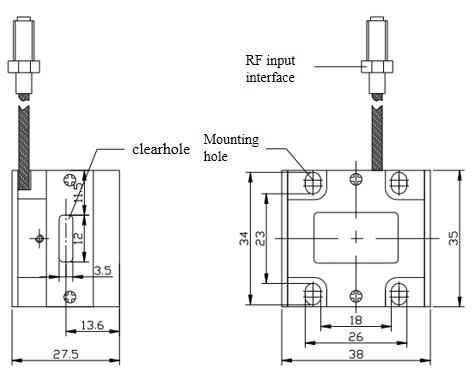

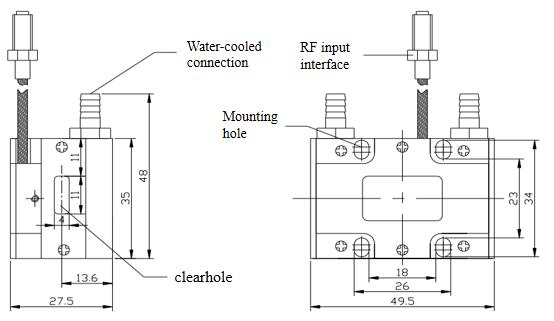

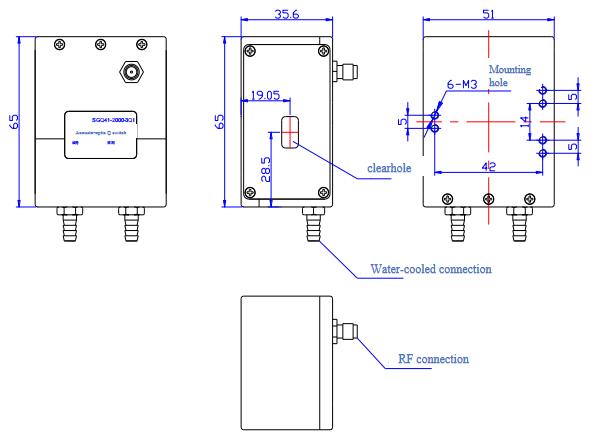

| Package | – | QC | QB | QI |
