Acousto-Optic Q-Switch Drivers in Laser Systems: A Technical Overview

In the realm of laser technology, pulsed lasers, characterized by their high power and short pulse durations, play a crucial role in various fields such as industrial processing, scientific research, and medical applications. The acousto-optic Q-switch, a key component for generating pulsed lasers, directly influences the output characteristics of the laser system. The acousto-optic Q-switch driver, in turn, is the core component that controls the operation of the acousto-optic Q-switch. This article provides an in-depth discussion of the principles, functionality, connection and debugging, performance optimization, cooling methods, and applications of AO Q-switch drivers in common laser systems.

What is an Acousto-Optic Q-Switch Driver?

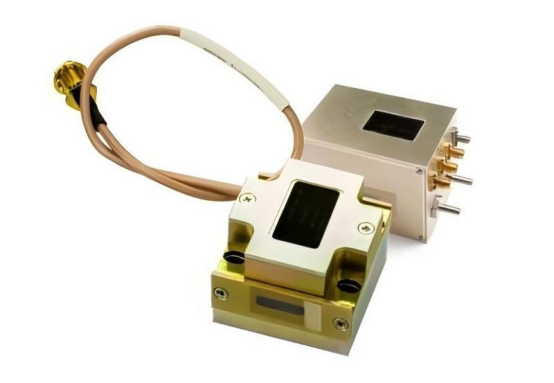

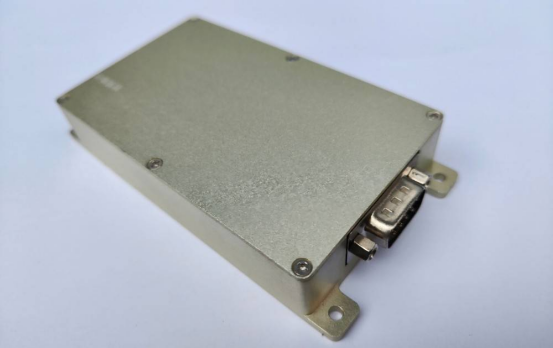

An acousto-optic Q-switch driver is an electronic device designed to drive the operation of an acousto-optic Q-switch. Its primary function is to provide the necessary radio frequency (RF) power signal to the Q-switch. By controlling the characteristics of the RF signal, the driver regulates the operational state of the Q-switch, thereby modulating the intracavity loss of the laser and generating pulsed laser output.

What is the Role of an Acousto-Optic Q-Switch Driver?

The acousto-optic Q-switch driver plays a crucial role in laser systems, with its main functions including:

RF Signal Generation: The driver produces RF signals with specific frequencies and power levels, which are essential for driving the Q-switch. The frequency and power of the RF signal must be precisely matched to the Q-switch’s specifications and operating parameters.

Controlling Q-Switch State: The driver precisely controls the on/off state of the RF signal, thereby regulating the Q-switch’s operation. When the RF signal is on, the Q-switch is in the “open” state, increasing intracavity loss and preventing laser oscillation. When the RF signal is off, the Q-switch is in the “closed” state, reducing intracavity loss and allowing laser oscillation, ultimately generating pulsed laser output.

Pulse Parameter Adjustment: RF power, pulse width, and repetition rate, the characteristics of the output laser pulses can be flexibly controlled. For example, adjusting the RF power can alter the pulse energy, while modifying the pulse width can change the pulse duration, and adjusting the repetition rate can vary the pulse output frequency.

Protection Features: High-end drivers often include protection features such as overcurrent and overvoltage protection, which can cut off power in abnormal conditions to safeguard the Q-switch and laser system from damage.

How to Connect and Debug an Acousto-Optic Q-Switch and Driver?

Connecting and debugging an acousto-optic Q-switch and driver requires specialized knowledge and skills, and it is recommended that these tasks be performed by professionals. Below are the general steps for connection and debugging:

Connection:

RF Connection: Connect the RF input port of the Q-switch to the RF output port of the driver using an RF cable. Impedance matching must be ensured to guarantee effective RF signal transmission.

Power Connection: Connect the driver’s power cable to a compatible power source. Ensure that the voltage and current capacity of the power supply meet the driver’s requirements.

Control Signal Connection: Connect additional control lines, such as trigger or synchronization signal lines, as needed. These lines are used for synchronized control of the laser system.

Debugging:

Parameter Setting: Power on the driver and set appropriate parameters, such as RF power, pulse width, and repetition rate, according to the driver’s manual. These settings should be adjusted based on the specific requirements of the laser system.

Optical Alignment: Adjust the position and angle of the Q-switch to ensure proper alignment with the laser beam. Precise optical alignment is essential for the proper functioning of the laser system.

Pulse Monitoring: Use instruments such as oscilloscopes to monitor the characteristics of the output laser pulses, including pulse width, energy, and stability. Monitoring these characteristics helps assess the laser system’s output performance.

Parameter Optimization: Adjust the driver’s parameters based on actual conditions to optimize laser output performance. For example, increasing RF power can enhance pulse energy, while reducing pulse width can produce shorter pulses.

How to Optimize the Performance of an Acousto-optic Q-Switch?

Optimizing the performance of an acousto-optic Q-switch requires a comprehensive consideration of the following factors:

Selecting the Appropriate Q-Switch and Driver: Choose a Q-switch and driver that match the laser system’s parameters and application requirements. For instance, high-power laser systems require Q-switches with high damage thresholds, while ultrashort pulse laser systems need Q-switches with fast response times.

Precise Alignment and Adjustment: Ensure accurate alignment and fine-tuning of the Q-switch with the laser beam to achieve optimal modulation. Any misalignment can degrade laser output performance.

Reasonable Parameter Settings: Set the driver’s parameters, such as RF power, pulse width, and repetition rate, based on the laser system’s characteristics and application needs. These settings should be carefully calculated and experimentally validated.

Effective Cooling: Ensure proper cooling of the Q-switch to prevent performance degradation and damage due to overheating. Excessive temperatures can reduce the Q-switch’s diffraction efficiency and even damage the device.

Regular Maintenance and Upkeep: Periodically clean and inspect the Q-switch to ensure its proper functioning. For example, regularly clean the acousto-optic medium’s surface and check the RF cable connections.

What are the Cooling Methods for Acousto-Optic Q-Switches?

Acousto-optic Q-switches generate a certain amount of heat during operation. If the heat cannot be dissipated in time, it will affect their performance and lifespan. Therefore, effective cooling is an important condition for ensuring the normal operation of acousto-optic Q-switches. The main cooling methods for acousto-optic Q-switches include:

Air Cooling: Uses fans or air pumps to provide airflow that dissipates heat from the Q-switch. This method is simple and convenient but offers limited cooling efficiency, making it suitable for low-power Q-switches.

Water Cooling: Employs a circulating water cooling system to remove heat from the Q-switch. This method provides excellent cooling and is suitable for high-power Q-switches.

Semiconductor Cooling: Semiconductor cooling employs thermoelectric coolers to dissipate the heat generated by the acousto-optic Q-switches. Semiconductor cooling provides a good cooling effect and has a compact size, making it suitable for applications with high cooling requirements.

The specific cooling method to be chosen depends on a comprehensive consideration of factors such as the power of the acousto-optic Q-switches, the working environment, and the application requirements.

How are Q-Switches Integrated with Common Laser Systems ?

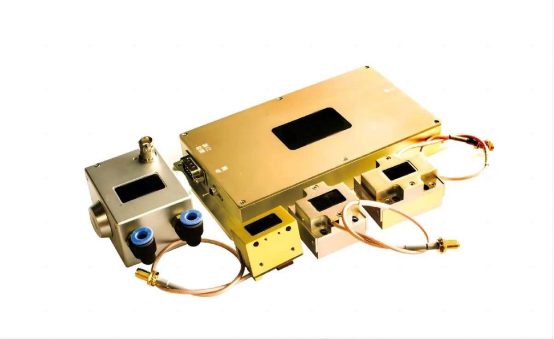

Acousto-optic Q-switches can be integrated with various laser systems, such as Nd:YAG lasers and fiber lasers.

Nd:YAG Lasers: Nd:YAG lasers are common solid-state lasers that can generate pulsed laser output using an acousto-optic Q-switch. The Q-switch is typically placed inside the laser’s resonator cavity, where it controls the generation of laser pulses by modulating the intracavity loss.

Fiber Lasers: Fiber lasers, known for their compact structure and stable performance, can also produce pulsed laser output with an acousto-optic Q-switch. The Q-switch can be placed either inside or outside the resonator cavity to modulate the laser pulses.

It is important to select the appropriate Q-switch and driver for different types of lasers and applications, and to perform necessary debugging and optimization. For example, Nd:YAG lasers typically require Q-switches with high power-handling capabilities, while fiber lasers need to consider mode-matching issues.

In conclusion, acousto-optic Q-switch drivers are indispensable key components in pulsed laser systems. A thorough understanding of their working principles, functions, connection and debugging, performance optimization, cooling methods, and applications in different lasers is crucial for ensuring the stable operation of laser systems and obtaining excellent laser output characteristics. It is hoped that this article can provide readers with a comprehensive and professional guide, helping them to better understand and apply acousto-optic Q-switch drivers.
