Acousto-Optic Q-Switch: The Key to Laser Pulse Modulation

In the realm of laser technology, the acousto-optic Q-switch plays a pivotal role. This device enables precise control over the output pulses of a laser, making it indispensable in a wide range of applications, including scientific research, industrial manufacturing, and medical procedures. This article delves into the intricacies of acousto-optic Q-switches, exploring their structure, operational principles, classifications, and diverse applications.

Structure and Composition of Acousto-Optic Q-Switches

The core principle of an acousto-optic Q-switch lies in the acousto-optic effect. When a sound wave propagates through a transparent medium, it induces periodic variations in the refractive index, creating a dynamic diffraction grating. As an incident light beam passes through this grating, it undergoes diffraction, altering the quality factor (Q) of the laser cavity.

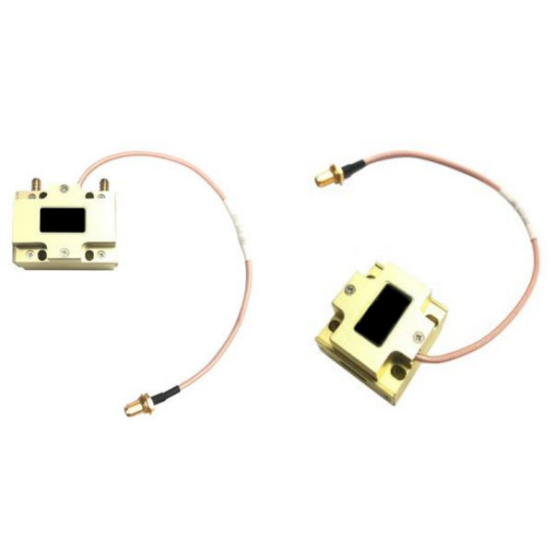

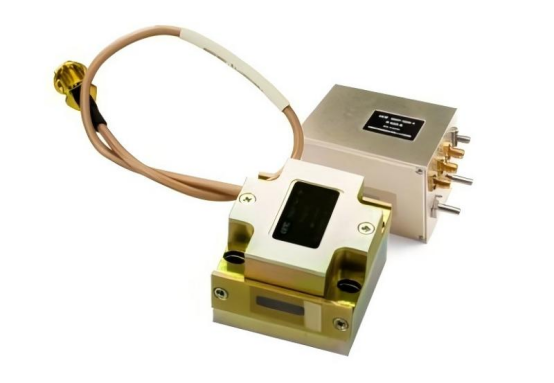

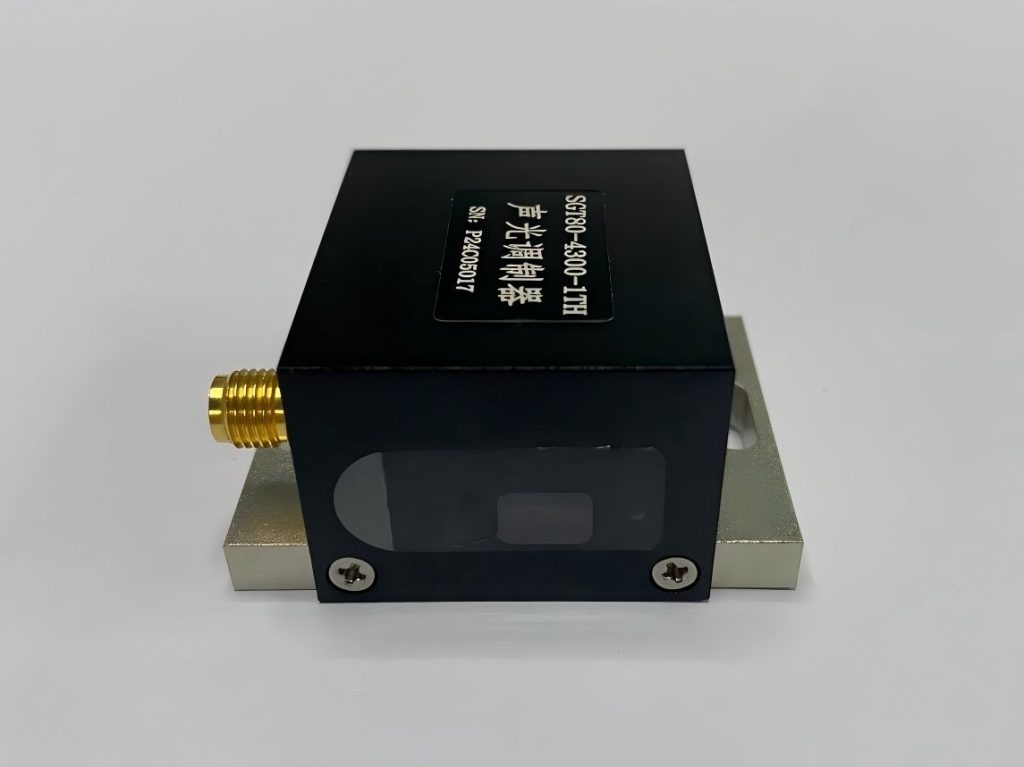

A typical acousto-optic Q-switch consists of the following components:

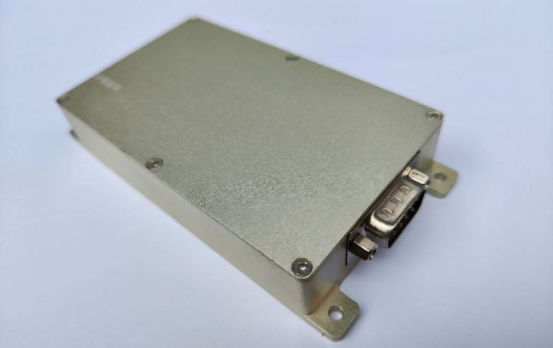

Q Switch Driver: This provides the high-frequency alternating current required to drive the transducer, generating ultrasonic waves.
Transducer: Converts electrical signals into mechanical vibrations, namely ultrasonic waves.
Acousto-optic medium: Typically a transparent acoustic crystal, such as quartz or lithium niobate, whose refractive index varies periodically under the influence of ultrasonic waves.
Acoustic absorber: Absorbs excess ultrasonic waves, preventing their reflection back to the transducer.

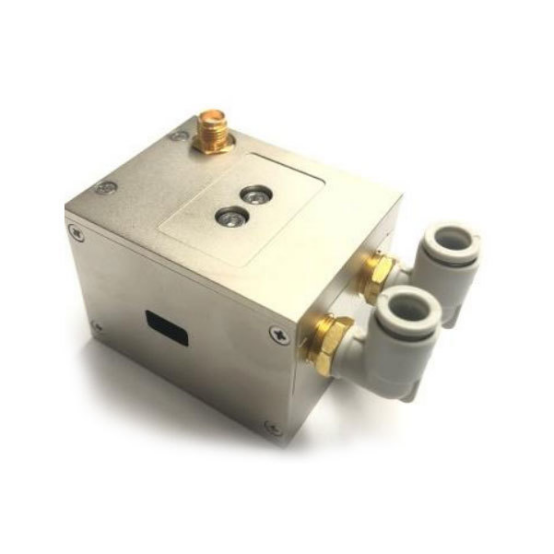

Cooling system: Dissipates heat to maintain the stable operation of the acousto-optic medium.

Working Principle of Acousto-Optic Q-Switches

The working principle of an acousto-optic Q-switch can be summarized in the following steps:
Energy accumulation: The laser pump source continuously injects energy into the laser cavity, causing population inversion in the laser medium.
Q-factor reduction: When a high-frequency voltage is applied to drive the transducer, ultrasonic waves are generated in the acousto-optic medium, forming a dynamic diffraction grating. The incident light is diffracted, leading to increased cavity loss and a decrease in the Q-factor. Laser oscillation is suppressed.
Rapid Q-factor increase: When the driving voltage is stopped, the ultrasonic waves disappear, and the diffraction grating vanishes. The cavity loss drops sharply, and the Q-factor increases rapidly. The accumulated energy in the cavity is released in a very short time, producing a high-energy laser pulse.

Classification of Acousto-Optic Q-Switches

Acousto-optic Q-switches can be categorized based on the geometrical arrangement of the acoustic wave and the incident light beam within the acousto-optic crystal.

1. Longitudinal Acousto-Optic Q-Switch

In a longitudinal acousto-optic Q-switch, the acoustic wave propagates perpendicular to the direction of the incident light beam. This configuration is relatively simple to implement, but it suffers from lower diffraction efficiency compared to other types. The simplicity of the design, however, often makes it a cost-effective choice for many applications.

2. Transverse Acousto-Optic Q-Switch

In a transverse acousto-optic Q-switch, the acoustic wave propagates parallel to the direction of the incident light beam. This configuration offers higher diffraction efficiency than the longitudinal type, but it requires a more complex design. The increased complexity is often justified by the improved performance, especially in high-power laser systems.

3. Oblique Incidence Acousto-Optic Q-Switch

The oblique incidence acousto-optic Q-switch represents a compromise between the longitudinal and transverse configurations. The acoustic wave propagates at an angle to the incident light beam, enabling a balance between diffraction efficiency and structural complexity. This type of Q-switch is often preferred for applications requiring both high performance and compact design.

Performance Metrics of Acousto-Optic Q-Switches

The performance of an acousto-optic Q-switch is characterized by several key metrics:

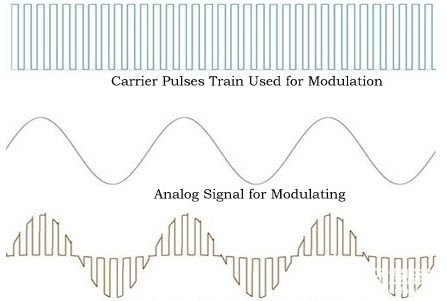

Modulation Depth: Modulation depth, often expressed as a percentage, quantifies the extent to which the Q-switch can modulate the cavity loss. A higher modulation depth results in a more significant change in the laser’s Q-factor, leading to higher peak powers in the output pulses.
Switching Speed: Switching speed refers to the time taken for the Q-switch to transition between its high-loss (Q-switched) and low-loss (continuous wave) states. A faster switching speed enables the generation of shorter laser pulses.
Insertion Loss: Insertion loss represents the optical power loss incurred when the light beam passes through the acousto-optic crystal, regardless of whether the Q-switch is activated or not. Minimizing insertion loss is crucial for maximizing the overall efficiency of the laser system.
Diffraction Efficiency: Diffraction efficiency quantifies the fraction of the incident light that is diffracted into the first-order diffracted beam when the Q-switch is activated. A higher diffraction efficiency leads to a more effective modulation of the cavity loss.
Stability: Stability refers to the ability of the acousto-optic Q-switch to maintain consistent performance over extended periods of time. Factors such as temperature fluctuations, mechanical vibrations, and aging can affect the stability of the Q-switch.

By carefully considering these performance metrics, researchers and engineers can select the most suitable acousto-optic Q-switch for a specific application, ensuring optimal laser performance.

Applications of Acousto-Optic Q-Switches

Owing to their numerous advantages, such as high modulation depth, fast switching speed, high stability, and ease of control, acousto-optic Q-switches find widespread applications in laser technology.

Lidar: Acousto-optic Q-switches can generate high-energy, short-pulse lasers for use in lidar systems, enabling the detection and ranging of distant targets.
Fiber optics: Acousto-optic Q-switches can serve as optical switches in fiber optic communication systems for modulating and demodulating optical signals.
Industrial processing: Acousto-optic Q-switches can produce high-power density laser pulses for applications like laser cutting, welding, and drilling.
Medical applications: Acousto-optic Q-switches can generate laser pulses with specific wavelengths for laser surgery and laser therapy.
Scientific research: Acousto-optic Q-switches can generate lasers with various wavelengths and pulse widths for fundamental scientific research.

In Summary

Acousto-optic Q-switches are indispensable optical devices in laser technology. By understanding their structure, operational principles, classifications, and applications, we gain a deeper appreciation of their significance in modern technology. As laser technology continues to evolve, acousto-optic Q-switches will undoubtedly play an even more prominent role, enabling new and innovative applications.
