AOM Modulator and Photodetector: A Powerful Duo for Light Control

In the field of optics and photonics, the ability to manipulate and control light is essential for technological innovation and application. The acousto-optic modulator (AOM) and the photodetector are two critical components in achieving precise light control. When combined, they create a versatile, efficient system capable of performing a wide array of optical signal processing tasks. This article explores the principles, capabilities, and applications of these components and their integration.

Understanding the Fundamentals of AOM Modulators and Photodetectors

To appreciate the synergy between AOM modulators and photodetectors, it is essential to first understand their individual mechanisms and roles.

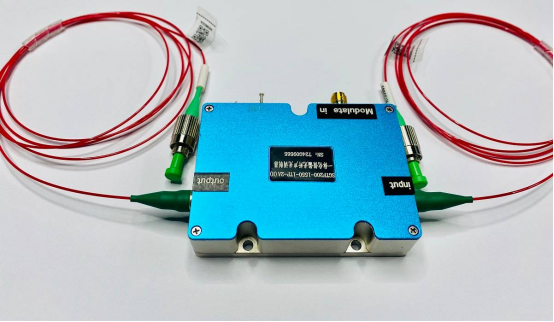

1. Acousto-Optic Modulator (AOM)

An AOM modulator is a device that uses the interaction between sound waves and light to manipulate properties such as intensity, frequency, and direction. It consists of three main components:

Piezoelectric transducer: Converts electrical signals into sound waves.
Acoustic medium: Often a crystal through which sound waves propagate.
Light interfaces: Where light enters and exits the device.

When an electrical signal is applied to the piezoelectric transducer, it generates sound waves that travel through the acoustic medium. These sound waves create periodic variations in the medium’s refractive index, forming a dynamic diffraction grating. As light passes through this grating, it is diffracted into multiple orders. The intensity and direction of these orders are determined by the frequency, amplitude, and phase of the sound waves.

Key features of AOM modulators include:

Fast switching speeds: AOM modulators can switch light on and off within nanoseconds, making them ideal for high-speed applications.
Wide frequency tuning range: Varying the electrical signal’s frequency allows significant shifts in the light’s frequency.
High diffraction efficiency: AOM modulators can diffract a substantial portion of the incident light into desired paths.
Low insertion loss: They introduce minimal signal loss, preserving optical power.
Linearity: This ensures precise modulation, critical for tasks like intensity control and signal encoding.

2. Photodetector

A photodetector converts light energy into electrical signals. It typically includes a photosensitive material that generates a current or voltage when exposed to light. The magnitude of this signal is directly proportional to the light’s intensity.

There are several types of photodetectors:

Photoconductive detectors: Use changes in the electrical conductivity of a semiconductor material.
Photovoltaic detectors: Generate voltage without an external power source, based on light intensity.
Photodiode detectors: Operate on the photoelectric effect, where photons eject electrons in a semiconductor material, creating a current.

Photodetectors play a critical role in applications requiring accurate light measurement and signal recovery.

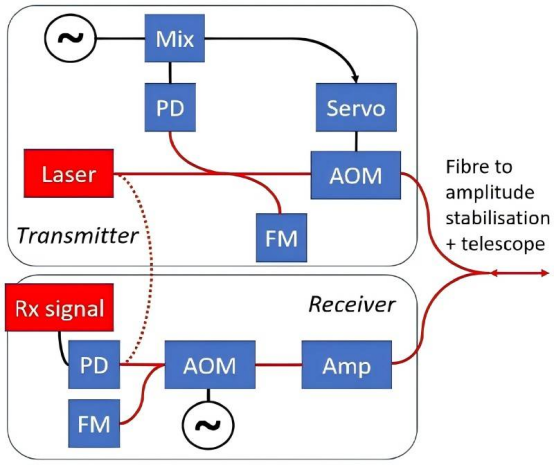

Synergy of AOM Modulators and Photodetectors

The synergy between AOM modulators and photodetectors enables a wide range of optical signal processing and manipulation techniques. When integrated, they offer numerous advantages:

1. Optical Switching and Routing

High-speed switching: AOM modulators can rapidly switch optical signals between different paths, enabling high-speed optical switching networks.
Flexible routing: By controlling the frequency and amplitude of the acoustic wave, the direction of the diffracted light can be precisely steered, allowing for flexible routing of optical signals.

2. Optical Modulation and Demodulation

Intensity modulation: AOM modulators can modulate the intensity of light by varying the amplitude of the acoustic wave, enabling digital or analog modulation schemes.
Frequency shifting: By shifting the frequency of the acoustic wave, the frequency of the diffracted light can be shifted, enabling frequency-shift keying (FSK) modulation.
Demodulation: Photodetectors can convert modulated optical signals back into electrical signals, allowing for the recovery of the original information.

3. Optical Filtering

Wavelength filtering: AOM modulators can be used as tunable filters to select specific wavelengths of light, enabling wavelength-division multiplexing (WDM) systems.
Spectral filtering: By controlling the frequency of the acoustic wave, AOM modulators can filter out specific spectral components of light, enabling spectral analysis and noise reduction.

4. Optical Beam Steering and Scanning

Beam steering: AOM modulators can deflect the direction of a laser beam by varying the frequency of the acoustic wave, enabling precise beam steering and pointing.
Beam scanning: By rapidly scanning the frequency of the acoustic wave, AOM modulators can create a rapidly scanning laser beam, useful for optical imaging and sensing applications.

5. Optical Signal Processing

Correlation: AOM modulators can be used to implement optical correlators, enabling pattern recognition and signal processing tasks.
Convolution: AOM modulators can be used to perform optical convolution, a fundamental operation in signal processing.

Applications of AOM-Photodetector Integration

The combination of AOM modulators and photodetectors has revolutionized multiple domains, from communication to biomedical imaging.

Optical Communication Systems: The demand for high-speed, reliable communication networks has made AOM-photodetector combinations indispensable in fiber-optic systems. AOM modulators provide precise modulation and switching capabilities, while photodetectors ensure accurate signal recovery, enabling efficient data transmission over long distances.
Laser Systems: AOM modulators play a pivotal role in controlling laser outputs, allowing for applications such as laser cutting, welding, and ranging. Photodetectors, in turn, monitor and provide feedback on the laser’s performance, ensuring consistent quality and precision.
Optical Sensing: The sensitivity and speed of AOM modulators and photodetectors make them ideal for developing optical sensors. These sensors measure physical quantities like temperature, pressure, and strain with high accuracy, finding applications in industrial automation, aerospace, and environmental monitoring.
Biomedical Imaging: In the realm of medical diagnostics, AOM modulators and photodetectors are key components in advanced imaging techniques such as optical coherence tomography (OCT) and fluorescence microscopy. These systems provide high-resolution images of biological tissues, aiding in early disease detection and research.
Spectroscopy: AOM modulators are employed in spectroscopy to tune the wavelength of light sources, enabling precise analysis of material compositions. Photodetectors capture the resulting spectral data, offering insights into chemical and physical properties.

AOM modulators and photodetectors, when combined, form a powerful duo for controlling and manipulating light signals. Their versatility, high speed, and wide range of applications make them indispensable components in modern optical systems. As technology continues to evolve, we can expect to see even more innovative applications of AOM-photodetector combinations, shaping the future of photonics and optics.
