Application of Acousto-Optic Modulators in 4 Different Fields

Acousto-optic modulators (AOMs) are sophisticated devices that control the properties of light beams using sound waves. At the heart of their operation lies the interaction between light and sound within a transparent crystal. When an acoustic wave propagates through this crystal, it creates periodic variations in the refractive index. These variations, in turn, interact with the incident light beam, leading to a range of effects, including diffraction, frequency shifting, and beam steering. This unique interplay of light and sound makes AOMs invaluable tools across a wide spectrum of scientific and technological applications.

AOMs in Laser Systems

AOMs play a crucial role in enhancing the performance and functionality of laser systems. Two prominent applications in this context are Q-switching and mode locking.

1. AOM for Q-Switching

Q-switching is a technique used to generate high-energy, short-duration laser pulses. In a conventional laser, the gain medium amplifies light circulating within the optical cavity. However, in a Q-switched laser, the cavity’s quality factor (Q) is initially low, preventing laser oscillation. This allows the population inversion within the gain medium to build up to a high level.

An AOM can effectively implement Q-switching by acting as a rapidly adjustable optical switch. During the buildup phase, the AOM is positioned to deflect the laser beam out of the cavity, preventing lasing. Once the population inversion reaches a critical level, the AOM is rapidly switched off, allowing the stored energy to be released as a short, intense laser pulse.

2. AOM for Mode Locking

Mode locking is another technique used to generate ultrashort laser pulses. In a multi-mode laser, different longitudinal modes oscillate independently, resulting in a broad spectral output. Mode locking forces these modes to oscillate with a fixed phase relationship, resulting in a coherent superposition that produces a train of short, intense pulses.

AOMs can be employed to achieve mode locking by introducing a time-varying loss modulation within the laser cavity. This modulation can be accomplished by modulating the acoustic wave driving the AOM. By carefully adjusting the modulation frequency, the AOM can synchronize the phases of the different laser modes, leading to the generation of ultrashort pulses.

AOMs in Beam Steering and Manipulation

The acousto-optic effect enables precise control over the direction of laser beams. When an acoustic wave propagates through a transparent medium, it creates periodic variations in the refractive index. This creates a moving diffraction grating that can diffract incident light.

1. Beam Steering

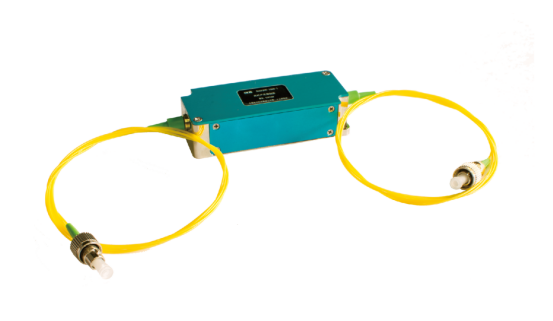

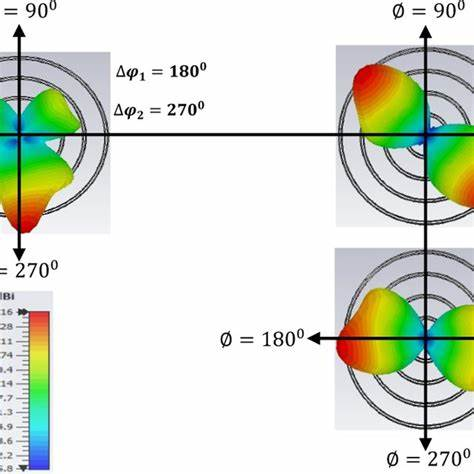

One of the most prominent applications of AOMs is in beam steering. When an acoustic wave propagates through the AOM crystal, it creates a moving diffraction grating. As a result, the incident light beam is diffracted at an angle that depends on the frequency of the acoustic wave.

By electronically varying the frequency of the acoustic wave, the direction of the diffracted beam can be precisely controlled. This rapid and accurate beam steering capability has numerous applications, including:

• Laser scanning: AOMs enable high-speed scanning of laser beams for imaging, materials processing, and laser displays.
• Optical switching: AOMs can be used to switch laser beams between different paths, enabling the construction of optical switches and routers.
• Adaptive optics: AOMs can be integrated into adaptive optics systems to compensate for atmospheric distortions and improve the quality of laser beams in long-distance applications.

2. Other Beam Manipulation Techniques

Beyond beam steering, AOMs can be utilized for various other beam manipulation techniques:

• Beam Shaping: By carefully controlling the acoustic wavefront, it is possible to shape the intensity distribution of the diffracted beam. This can be used to create custom beam profiles for specific applications.
• Beam Splitting: By adjusting the acoustic power, the diffraction efficiency of the AOM can be controlled. This allows for the splitting of a single laser beam into multiple beams with varying intensities.
• Beam Switching: AOMs can be used to rapidly switch a laser beam between different paths by deflecting it towards different directions. This is crucial for applications such as optical time-division multiplexing (OTDM) in telecommunications.

AOMs in Telecommunications

AOMs have found widespread applications in optical telecommunications, particularly in optical switching and routing.

1. Optical Switching and Routing

The rapid growth of telecommunications networks demands high-speed, flexible, and efficient optical switching and routing capabilities. AOMs play a crucial role in fulfilling these requirements.

By integrating AOMs into optical circuits, it becomes possible to switch optical signals between different paths with high speed and precision. This enables the dynamic reconfiguration of optical networks to adapt to changing traffic demands and optimize network performance.

2. Signal Processing

AOMs can also be employed for various signal processing tasks in telecommunications systems:

• Optical modulation: AOMs can be used to modulate the intensity of optical signals, enabling the transmission of information over optical fibers.
• Signal demodulation: AOMs can be used to demodulate optical signals, extracting the information encoded within the optical carrier.
• Optical filtering: AOMs can be used to filter optical signals based on their frequency, enabling the separation of different wavelength channels in wavelength-division multiplexing (WDM) systems.

AOMs in Spectroscopy

AOMs are valuable tools in spectroscopy, enabling precise control over the frequency and intensity of laser light.

1. Frequency Shifting

AOMs can effectively shift the frequency of light beams. When a light beam is diffracted by an AOM, its frequency is Doppler-shifted by an amount equal to the frequency of the acoustic wave.

This frequency shifting capability has numerous applications in spectroscopy:

• Raman spectroscopy: AOMs can be used to shift the frequency of the laser beam used in Raman spectroscopy, enabling the detection of weak Raman signals.
• Laser Doppler velocimetry: AOMs can be used to shift the frequency of the laser beam used in laser Doppler velocimetry, enabling the measurement of the velocity of moving objects.

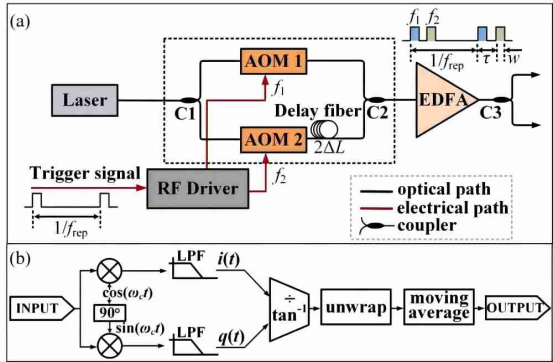

• Heterodyne detection: AOMs can be used to shift the frequency of one of the beams in a heterodyne detection system, enabling the detection of small frequency shifts.

2. Spectral Filtering

AOMs can also be used for spectral filtering of light. By carefully controlling the frequency and amplitude of the acoustic wave, AOMs can be configured to diffract only a specific range of frequencies from the incident light beam.

This spectral filtering capability has applications in:

• Laser spectroscopy: AOMs can be used to filter out unwanted spectral components from the laser beam, improving the spectral purity of the laser output.

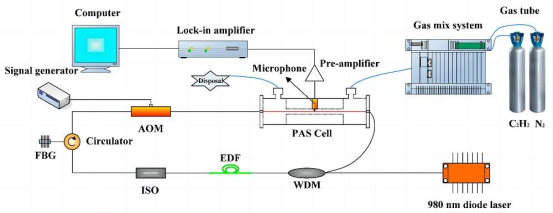

• Optical sensing: AOMs can be used to filter out specific wavelengths of light in optical sensing applications, enabling the detection of specific chemical or biological species.

AOMs stand as a testament to the remarkable interplay between light and sound. Their versatility and precision make them indispensable tools across a diverse range of applications, from generating high-energy laser pulses to enabling high-speed optical communications. As research and development continue, AOMs are expected to play an increasingly vital role in shaping the future of technology.
