Applications of DAS and DFOS in Fiber AOM
Fiber optic sensing technology has become increasingly important in modern communication, industrial inspection, and security monitoring. Two notable advancements in this field, distributed acoustic sensing (DAS) and distributed fiber optic sensing (DFOS) leverage optical fibers as sensing media to enable real-time monitoring of environmental vibrations, temperature changes, and strain variations.
On the other hand, the fiber acousto-optic modulator (AOM) is a critical component in optical signal processing, widely used for beam control, frequency modulation, and precision measurement. Integrating DAS and DFOS with AOMs can significantly improve modulation efficiency, enhance system stability, and compensate for environmental disturbances. This article explores the fundamental principles of DAS and DFOS, their applications in AOMs, and their broader implications for optical communication, seismic monitoring, and industrial sensing.
Overview of Distributed Acoustic Sensing (DAS)
1. Basic Principles of Distributed Acoustic Sensing
DAS technology utilizes Rayleigh backscattering in optical fibers to detect minute variations in acoustic signals and vibrations along the fiber length. When sound waves or mechanical vibrations interact with the fiber, they induce microscopic strain changes, which, in turn, cause phase variations in the backscattered light. By analyzing these phase shifts using coherent detection methods, DAS enables real-time and spatially distributed acoustic monitoring.
2. Key Characteristics of Distributed Acoustic Sensing
- High Sensitivity: Capable of detecting extremely weak acoustic and vibration signals, with nanometer-scale precision.
- Long-Range Monitoring: A single optical fiber can cover tens to hundreds of kilometers, making DAS suitable for extensive monitoring applications.
- Passive Sensing: Optical fibers do not require external power, allowing deployment in harsh or remote environments.
- Real-Time Data Acquisition: DAS offers millisecond-level data updates, making it ideal for applications requiring dynamic acoustic monitoring.
3. Applications of Distributed Acoustic Sensing in Fiber Acousto-Optic Modulators
- Optimization of Acoustic Wave Propagation: DAS can continuously monitor acoustic wave distribution within the AOM, ensuring uniform acoustic fields, which improves modulation efficiency.
- Feedback Control for Stability Enhancement: By analyzing DAS-acquired data, AOM drive signals can be dynamically adjusted to enhance system adaptability and precision.
- Environmental Noise Mitigation: DAS detects external mechanical vibrations affecting the AOM, enabling adaptive compensation mechanisms that improve modulation robustness.
Overview of Distributed Fiber Optic Sensing (DFOS)
1. Basic Principles of Distributed Fiber Optic Sensing
DFOS relies on Brillouin scattering, Raman scattering, or fiber Bragg grating (FBG) reflections to measure temperature, strain, and structural changes along an optical fiber.
- Brillouin Scattering: Used for temperature and strain monitoring, making it ideal for structural health monitoring applications.
- Raman Scattering: Primarily employed for high-precision temperature sensing, often utilized in thermal management systems.
- Fiber Bragg Grating (FBG) Technology: Offers localized sensing capability, useful for high-resolution strain and temperature measurements.
2. Key Characteristics of Distributed Fiber Optic Sensing
- Distributed Measurement Capability: Unlike point sensors, DFOS provides continuous, real-time sensing along the entire fiber length.
- High Precision: Temperature sensitivity can reach 0.1°C resolution. And, the strain measurement accuracy can achieve 10 με.
- Fast Response Time: DFOS systems offer real-time monitoring, making them suitable for applications requiring instantaneous environmental adjustments.
3. Applications of Distributed Fiber Optic Sensing in Fiber Acousto-Optic Modulators
- Temperature Monitoring and Compensation: AOMs are susceptible to temperature variations that affect modulation performance. DFOS enables real-time temperature tracking and compensates for thermal fluctuations, improving long-term stability.
- Structural Strain Analysis: The optical fiber within an AOM assembly may experience mechanical stress, which DFOS can monitor. This data allows for structural optimization, reducing stress-induced signal degradation.
- Optical Loss Monitoring: DFOS can detect localized fiber losses within the modulator, aiding in optical path optimization and ensuring high-quality signal modulation.
Understanding Fiber Acousto-Optic Modulators (AOMs) and Their Working Principles

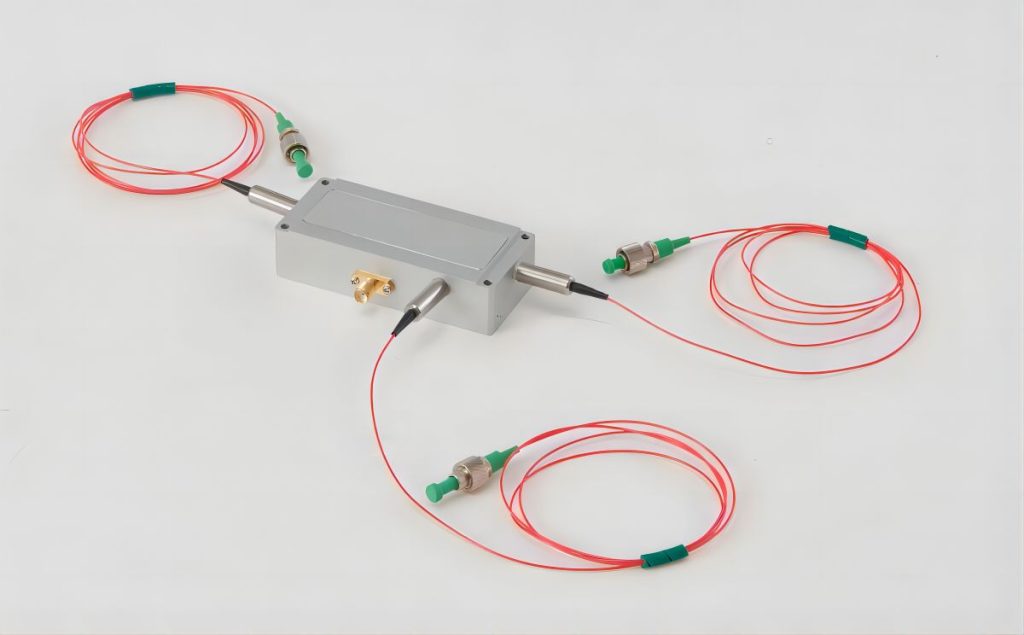

1. Basic Structure of Fiber AOMs
A fiber acousto-optic modulator typically consists of:
- An ultrasonic transducer that generates acoustic waves at specific frequencies.
- An acoustic propagation medium, often a specialized optical fiber or transparent crystal, where acoustic-optic interaction occurs.
- An optical fiber coupler to direct light into the modulation region.
2. Acousto-Optic Interaction Mechanism
The modulation in a fiber AOM is achieved through the interaction between an incident optical wave and the acoustic wave traveling in the medium. This interaction leads to:
- Frequency Modulation (AOM-FM): The optical output frequency is altered based on the acoustic wave frequency.
- Intensity Modulation (AOM-AM): The output optical power is controlled by adjusting the acoustic wave amplitude.
- Directional Modulation: The diffraction angle of the modulated optical wave changes depending on the acoustic wave parameters.
Integration of DAS and DFOS with Fiber AOMs for Performance Enhancement
1. DAS-Assisted Optimization of Fiber AOMs
- Acoustic Wave Distribution Control: DAS can provide real-time mapping of the acoustic field in the fiber AOM, allowing for precise control of the modulation characteristics.
- Active Feedback Mechanism: By integrating DAS with fiber AOMs, a closed-loop control system can be implemented, dynamically adjusting the driving frequency to enhance modulation efficiency.
- Noise Reduction: External vibrations and acoustic disturbances can degrade fiber AOM performance. DAS allows for real-time noise source identification, enabling advanced signal processing techniques to minimize interference.
2. DFOS-Assisted Stability Control in Fiber AOMs
- Temperature Stabilization: DFOS provides continuous monitoring of temperature fluctuations, allowing automatic compensation mechanisms to maintain a stable modulation frequency.
- Structural Integrity Monitoring: By analyzing strain variations in fiber AOM components, DFOS helps detect mechanical deformations that could compromise modulation efficiency.
- Loss Detection and Compensation: Optical losses within a fiber AOM can be identified and corrected using DFOS data, ensuring optimal modulation performance over extended operational periods.
Practical Applications of DAS and DFOS in Fiber AOM-Integrated Systems
Optical Communication
Integrating DAS and DFOS into fiber AOMs enhances optical signal modulation, improving stability and reliability in high-speed fiber optic communication networks.
Seismic and Structural Health Monitoring
Combining DAS with fiber AOM technology enables high-sensitivity seismic wave detection, improving earthquake monitoring and early warning systems. Additionally, structural health monitoring benefits from real-time strain analysis, aiding in infrastructure safety.
Industrial Sensing and Ultrasonic Testing
Fiber AOMs, combined with DAS and DFOS, can be utilized in non-destructive testing (NDT), material evaluation, and high-precision ultrasonic detection for industrial applications.
Conclusion
The integration of distributed acoustic sensing (DAS) and distributed fiber optic sensing (DFOS) with fiber acousto-optic modulators (AOMs) opens new avenues for optimizing optical signal processing, improving modulation precision, and enhancing environmental adaptability. These technologies enable real-time monitoring and compensation for external disturbances, leading to more stable, efficient, and reliable AOM performance. In the future, with the advancement of optical fiber sensing technology, AOMs will play crucial roles in an even broader range of fields.
