Fiber to Free Space 1064nm Isolator (250W)
A Fiber to Free Space 1064nm Isolator (250W) is a device used in laser systems that transmit light at a wavelength of 1064 nanometers (nm), which is in the near-infrared (NIR) spectrum. It allows light to pass through in one direction but blocks it in the other direction. This is important for protecting sensitive laser components from damage caused by back reflections.
Features of Fiber to Free Space 1064nm Isolator
- High Average Power Handling
- Wavelength
- Free Space Output
- High isolation
- Low insertion loss
- Polarization maintaining (PM) fiber input
Applications of Fiber to Free Space 1064nm Isolator
- Material processing
- Laser welding
- Laser cutting
- Micromachining
- LIDAR (Light Detection and Ranging)
- Free-space laser communication
Specifications of Fiber to Free Space 1064nm Isolator
| Parameter | Unit | Value |
| Center Wavelength (λc) | nm | 1064 |
| Max. Insertion Loss, 23℃, λc @1064 nm | dB | 0.4 |
| Max. Insertion Loss, 23℃@ 650 nm | dB | 7 |
| Min. Isolation, 23℃, λc | dB | 30 |
| Min. Return Loss | dB | 50 |
| Nominal Output Beam Diameter (1/e²) | mm | 7.0 ±0.5 or Specify |
| Min. Beam Circularity | % | 90 |
| Max. M2 Degradation | % | 10 |
| Max. Average Optical Power | W | 250 |
| Max. Peak Power for ns pulse | kW | 50 |
| Max. Average Optical Power from Cladding | W | 5 |
| Fiber Type (input port) | LMA-GDF-30/250-M fiber or Specify | |
| Operating Temperature | ℃ | 10 to +50 |
| Storage Temperature | ℃ | 0 to +60 |

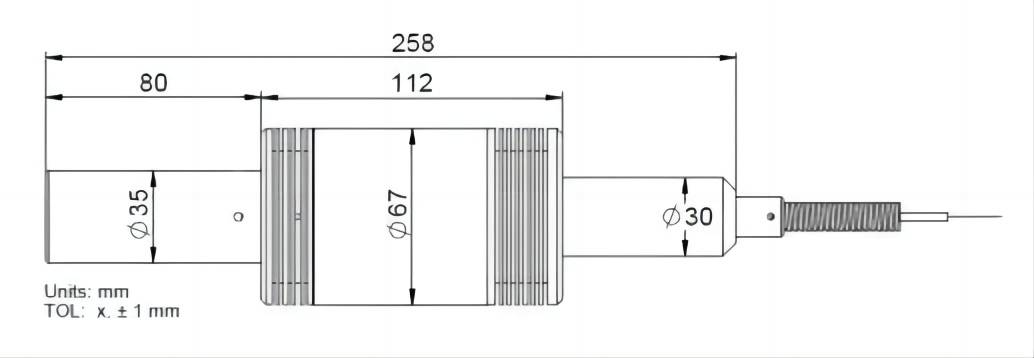

Package Dimensions of Fiber to Free Space 1064nm Isolator
Ordering Information of Fiber to Free Space 1064nm Isolator
FSHI– ①- ②- ③- ④- ⑤- ⑥- ⑦- ⑧
| ①: Wavelength | 03 – 1030 nm, 06 – 1064 nm, SS – Specify |
| ②: Handing Power | 200 – 200 W, 250 – 250 W, SS – Specify |
| ③: Beam Diameter | 7 – 7 ± 0.5 mm, 10 – 10 ± 0.5 mm, SS – Specify |
| ④: Jacket Type | 10 – 10 mm Armoured cable, SS – Specify |
| ⑤: Jacket Length | 2 – 2.0 m, 3 – 3.0 m, 4 – 4.0 m, 5 – 5.0 m, S – Specify |
| ⑥: Fiber Length | 3 – 3.0 m, 4 – 4.0 m, 5 – 5.0 m, 6 – 6.0 m, S – Specify |
| ⑦: Fiber Type | 1 – Nufern LMA-GDF-30/250-M, 2 – GSF-30/250 YZ054, 3 – GDF-30/250 DZ025, 4 – LMA- GDF-25/250, S – Specify |
| ⑧: Power Type | P – Pulse application, C – Continuous wave |
