How Are Fiber Delay Lines Used in Fiber Optic Sensors?
Fiber optic sensors have emerged as a powerful technology with numerous advantages, including immunity to electromagnetic interference, small size, and lightweight. These attributes have led to their widespread adoption in various fields, such as aerospace, healthcare, and industrial monitoring. A key component in many advanced fiber optic sensors is the fiber delay line, which introduces a controlled time delay into an optical signal by manipulating the path length traveled by the light within an optical fiber. This article will explore the fundamental principles of fiber delay lines, delve into their diverse applications in fiber optic sensing, and discuss the challenges in this exciting field.

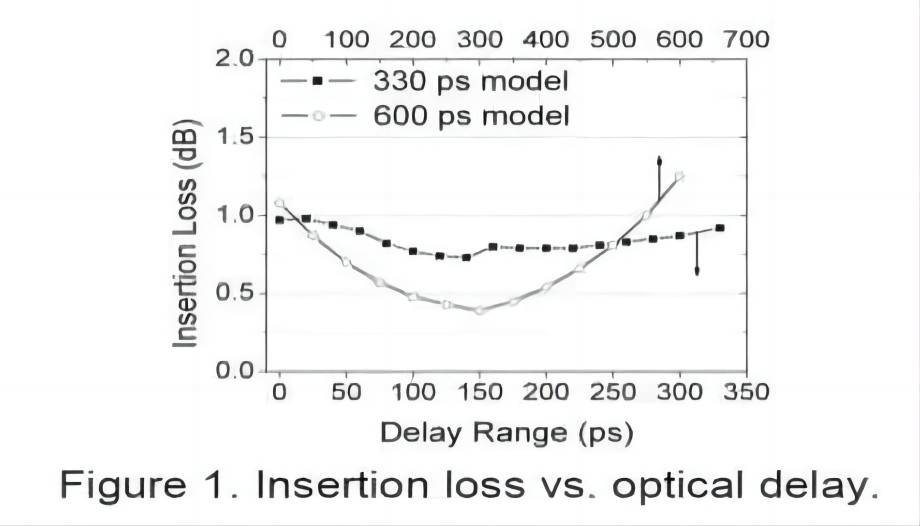

Working Principles of Fiber Delay Lines
Fiber Delay Lines exploit the fundamental principle that light travels at a finite speed within an optical fiber. By manipulating the fiber length, refractive index, or using structures like LPFGs, it is possible to introduce precise and controlled time delays into optical signals. These time delays will used for various applications in fiber optic sensing, signal processing, and telecommunications.

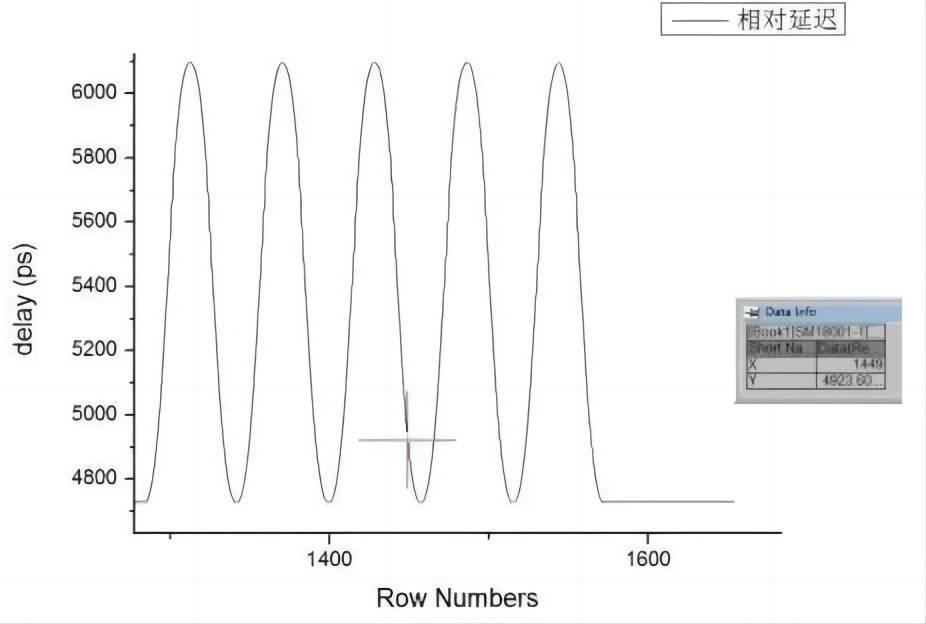

Applications of Fiber Delay Lines in Fiber Optic Sensors
A. Interferometric Sensors
Mach-Zehnder Interferometer:
In a Mach-Zehnder interferometer, light is split into two arms. By introducing an fiber delay line into one or both arms, a controlled path difference is created. This path difference alters the phase of the light in one arm relative to the other. When the two beams recombine, the interference pattern changes based on the path difference and any external perturbations that alter the optical path length. This principle is used for sensing applications such as strain, temperature, and vibration.
Michelson Interferometer:
In a Michelson interferometer, light is split and then recombined after reflecting from two mirrors. Path imbalances between the two arms can significantly impact the interference pattern and reduce sensitivity. fiber delay lines can be strategically placed in one or both arms to compensate for these path imbalances. By adjusting the fiber delay line length, the optical path lengths can be precisely matched, improving the overall sensitivity and stability of the interferometer.
Sagnac Interferometer:
The Sagnac interferometer is a ring interferometer used for rotation sensing. When the interferometer rotates, the effective path lengths for light traveling in opposite directions around the ring become slightly different due to the Sagnac effect. fiber delay lines can be incorporated into the Sagnac loop to enhance the sensitivity to rotation. By carefully adjusting the fiber delay line lengths, the interferometer can be made more sensitive to small rotations, enabling applications such as gyroscopes and navigation systems.
B. Signal Processing
Pulse Shaping and Compression:
fiber delay lines can be used to manipulate the temporal shape of optical pulses. By introducing carefully controlled time delays along different paths, it’s possible to stretch, compress, or reshape optical pulses. This capability is essential for applications such as optical communication systems, where pulse shaping is crucial for high-speed data transmission.
Time-Domain Multiplexing:
fiber delay lines play a vital role in time-domain multiplexing, where multiple optical signals are transmitted simultaneously on a single fiber. By introducing different time delays to each signal using fiber delay lines, they can be separated at the receiver. This technique increases the data capacity of optical communication systems.
C. Other Applications
- Strain Sensing: fiber delay lines can be used to measure strain by monitoring changes in the optical path length caused by strain-induced deformations in the fiber.
- Temperature Sensing: fiber delay lines can be employed to measure temperature by exploiting the temperature dependence of the refractive index of the fiber.
- Acoustic Sensing: fiber delay lines can be used to detect acoustic waves by measuring the phase shifts induced in the optical signal as the acoustic wave interacts with the fiber.
- Biosensing: fiber delay lines can be integrated into biosensors to detect the presence and concentration of biomolecules. Changes in the refractive index of the surrounding medium due to the binding of biomolecules to the sensor surface can be measured using interferometric techniques that utilize fiber delay lines.
Challenges of Fiber Delay Lines in Fiber Optic Sensors
Temperature Sensitivity:
Temperature fluctuations can significantly affect the refractive index of the fiber, leading to variations in the time delay introduced by the fiber delay line. This temperature sensitivity can introduce errors in the sensor measurements and limit the accuracy and stability of the system.
Environmental Disturbances:
External factors such as pressure, vibration, and electromagnetic interference can also influence the optical path length and introduce noise into the sensor measurements. These environmental disturbances can degrade the performance and reliability of fiber delay line-based sensors.
Fabrication Complexity:
Precise fabrication of fiber delay lines, especially those involving complex structures like LPFGs, can be challenging and may require specialized equipment and expertise. Maintaining consistent and high-quality fabrication processes is crucial for ensuring the reproducibility and performance of the fiber delay lines.
Integration with Other Components:
Integrating fiber delay lines with other components in a compact and robust manner can be challenging. This often requires careful packaging and alignment techniques to minimize losses and ensure proper functionality.
Advancing Fiber Optic Sensing with FDLs
Fiber delay lines represent a crucial technology for advancing the capabilities of fiber optic sensors. By leveraging the unique properties of fiber delay lines, researchers can continue to develop innovative and high-performance sensing systems with a broad range of applications across various fields. Smart Sci & Tech as the professional supplier in this field could provide you with the latest and most reliable fiber delay lines.
