How to Choose Among Fiber Optic AOM, AOFS and AOD?

Fiber optic technology is ubiquitous in modern science and technology. In the field of communications, it builds a high-speed network for global information transmission; in the medical industry, it assists in precise operations such as endoscopic imaging; in the field of sensing, it can keenly perceive environmental changes. Fiber optic AOM, AOFS, and AOD are of great importance in their respective optical fields. AOM can efficiently modulate light, AOFS can accurately filter, and AOD can accurately deflect light. Because different projects or equipment have different requirements for light modulation, filtering, and deflection, in fiber-related application scenarios, choosing the right AOM, AOFS, or AOD is an inevitable requirement to achieve ideal performance, control costs, and ensure stability.

Characteristics and Application Scenarios of Fiber Optic AOM (Acousto-Optic Modulator)

In a fiber optic acousto-optic modulator (AOM), a traveling acoustic wave induces periodic variations in the refractive index of an optical fiber, creating a dynamic grating. As light passes through this region, the periodic refractive index changes cause diffraction, enabling modulation of the light beam. This fundamental principle leverages the interaction between sound waves and light to manipulate the propagation characteristics of light within the fiber.

Performance Characteristics

Broad Modulation Bandwidth: Fiber optic AOMs typically offer a wide modulation bandwidth, ranging from tens of kilohertz to hundreds of megahertz, accommodating various signal frequencies.
Deep Modulation Depth: The modulation depth can be adjusted to achieve significant control over the intensity of the modulated light.
Low Insertion Loss: These devices generally exhibit low insertion loss, usually within a few decibels, minimizing signal attenuation during modulation.

Typical Application Areas

Optical communications: Signal modulation for high-speed data transmission.
Laser processing: Precise control of laser power and frequency for cutting, welding, and micromachining.
Optical sensing: Detection and measurement of physical quantities like strain, temperature, and pressure.
Optical switching: Routing and switching of optical signals in networks.
Spectroscopy: Wavelength tuning and intensity modulation for spectral analysis.
Optical testing: Measurement of parameters like modulation transfer function, optical return loss, and polarization mode dispersion.

Characteristics and Application Scenarios of Fiber AOFS (Acousto-Optic Filter)

A fiber optic acousto-optic filter (AOFS) operates on the principle of acousto-optic interaction. When an acoustic wave propagates through an optical fiber, it induces periodic variations in the fiber’s refractive index, creating a grating-like structure. As light passes through this structure, the different wavelengths experience varying degrees of diffraction or reflection due to the acousto-optic interaction. This selective diffraction enables the filtering of specific wavelengths.

Performance Characteristics

Tunable Bandwidth: Fiber AOFS can be designed to achieve a wide range of filter bandwidths, from narrowband to broadband, allowing for versatile applications.
High Center Frequency Stability: These filters exhibit excellent center frequency stability, making them less susceptible to external disturbances.
Low Insertion Loss: The insertion loss within the passband is typically low, ensuring efficient signal transmission.
Fast Tuning Speed: AOFS can be rapidly tuned to different wavelengths, enabling dynamic filtering applications.
High Spectral Purity: The filtered output typically exhibits high spectral purity, reducing noise and improving signal quality.

Application Areas

Optical spectrum analysis: Isolating specific wavelengths for precise spectral analysis.
Optical communications: Wavelength division multiplexing and add/drop multiplexing.
Optical sensing: Measuring physical quantities like temperature, strain, and pressure.
Laser systems: Wavelength selection, line narrowing, and mode locking.
Optical coherence tomography: High-resolution imaging of biological tissues.
Optical metrology: Precise measurements of distance, displacement, and vibration.

Characteristics and Application Scenarios of Fiber Optic AOD (Acoustic-Optic Deflector)

A fiber optic acousto-optic deflector (AOD) operates on the principle of acousto-optic interaction. As an acoustic wave propagates through an optical fiber, it induces periodic variations in the fiber’s refractive index, creating a dynamic diffraction grating. When light passes through this grating, different frequencies of light are diffracted at different angles due to the acousto-optic effect, resulting in the deflection of the light beam.

Performance Characteristics

Wide Deflection Angle Range: Fiber optic AODs offer a tunable range of deflection angles, allowing for flexible control of the beam’s direction.
High Resolution: These devices can achieve high resolution, enabling precise control over the deflection position of the light beam.
Fast Response Time: Fiber optic AODs exhibit fast response times, enabling rapid switching of the beam’s direction.
Low Insertion Loss: The insertion loss is typically low, minimizing signal attenuation during deflection.
High Efficiency: AODs can achieve high diffraction efficiency, ensuring a significant portion of the incident light is deflected.

Application Areas

Laser scanning: Controlling the scanning direction of laser beams for image creation.
Optical communications: Beam steering and switching for dynamic routing.
Optical signal processing: Spectral filtering, pulse shaping, and time-division multiplexing.
Optical testing: Measuring characteristics of optical components and systems.
Optical storage: Addressing and reading/writing data.
Optical tweezers: Manipulating microscopic particles with high precision.

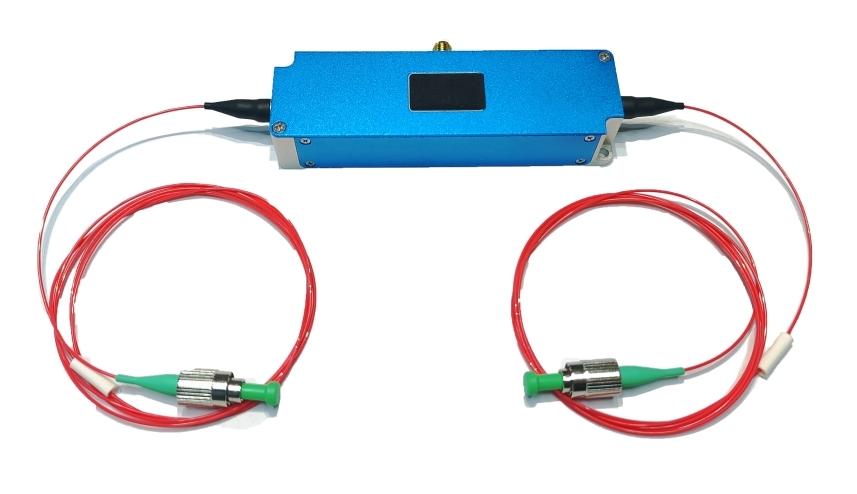

1064nm Integrative Fiber AOM Series (AOM+Drive)

Factors to Consider When Selecting Fiber Optic AOMs, AOFS, and AODs

When selecting fiber optic acousto-optic modulators (AOMs), filters (AOFS), and deflectors (AODs), several key factors must be considered to ensure optimal performance and compatibility with your specific application.

1. Performance Requirements

Modulation Frequency: For applications requiring precise signal processing, such as high-speed optical communications, modulation frequency is a critical parameter. A higher modulation frequency enables faster data rates and more complex modulation formats.
Filter Bandwidth: In applications involving spectral analysis, the filter bandwidth of AOFS determines the spectral resolution. A narrow bandwidth is necessary for precise wavelength discrimination, while a wider bandwidth is suitable for broadband measurements.
Deflection Angle and Resolution: For laser scanning or optical storage applications, the deflection angle and resolution of AODs are of paramount importance. A larger deflection angle allows for a wider scanning range, while higher resolution enables finer feature resolution.
Insertion Loss: Low insertion loss is desirable to minimize signal attenuation and maximize system efficiency.
Efficiency: The efficiency of the acousto-optic interaction affects the power of the diffracted or modulated light. Higher efficiency is generally preferred.

2. Cost Considerations

Purchase Cost: The initial investment in the device is a significant factor. Prices can vary widely among different suppliers, so it is essential to compare the cost-performance ratio of different options.
Operating Costs: Consider the ongoing costs associated with the device, including energy consumption, maintenance, and potential repair expenses. Over the long term, these costs can significantly impact the total cost of ownership.

3. System Compatibility

Optical Interface: Ensure that the optical interface of the device is compatible with your existing fiber optic system. This includes factors such as fiber type, connector type, and polarization.
Electrical Interface: Verify that the electrical interface of the device is compatible with your system’s control and data acquisition equipment. Consider factors such as voltage levels, signal standards, and control protocols.

4. Environmental Considerations

Temperature Range: The device should be able to operate reliably over a wide range of temperatures, from extremely cold to extremely hot environments.
Humidity: High humidity levels can affect the performance of optical components. Ensure that the device is adequately sealed to prevent moisture ingress.
Electromagnetic Interference (EMI): The device should be designed to withstand electromagnetic interference from other electronic equipment, ensuring stable operation in noisy environments.
Vibration and Shock: For applications in harsh environments, the device should be mechanically robust to withstand vibration and shock.

Make the Right Choice

Fiber optic AOMs, AOFS, and AODs offer diverse functionalities for light manipulation. AOMs modulate, AOFS filter, and AODs deflect light. The choice depends on specific application needs, such as modulation frequency, filter bandwidth, or deflection angle. Smart Sci & Tech is a high-tech enterprise specializing in kinds of acousto-optic devices, for more information about the other factors to consider including cost, system compatibility, and environmental robustness please contact us.
