Laser Linewidth Test and Its Role in Optical Fiber Communication
Laser technology has become an integral part of modern science and industry, finding applications in fields such as optical communication, precision measurement, and quantum computing. One of the critical parameters that define laser performance is laser linewidth, which determines the spectral purity of a laser source. Understanding and accurately measuring laser linewidth is essential for optimizing laser applications, particularly in coherent optical communications and high-precision spectroscopy.
What is Laser Linewidth?
Laser linewidth refers to the spectral width of the light emitted by a laser source, typically measured as the Full Width at Half Maximum (FWHM) of the emission spectrum. While an ideal laser emits light at a single wavelength, real lasers exhibit a finite linewidth due to various factors, resulting in a spread of frequencies around the central wavelength. This linewidth is expressed in hertz (Hz), representing the range of frequencies over which the laser emits.
Units and Representation
- Laser linewidth is commonly expressed in Hertz (Hz), with narrow linewidth lasers often featuring linewidths in the kHz or even Hz range.
- It can also be described using wavenumber (cm-1) or wavelength (nm), depending on the application.
- The linewidth is graphically represented as the power spectral density (PSD) curve of the laser’s electric field.
The Physical Significance of Laser Linewidth
Relationship Between Linewidth and Coherence
- Monochromaticity: A narrower linewidth implies higher spectral purity, which is crucial for applications requiring minimal frequency noise.
- Coherence Length: The coherence length (L_c) is inversely proportional to linewidth. A narrow linewidth results in a longer coherence length, which is vital for interferometric applications.
- Temporal Coherence: A smaller linewidth ensures higher phase stability, making the laser more suitable for coherent communication and high-precision metrology.
Laser Stability and Linewidth
- Lasers with narrower line widths exhibit better frequency stability, which is essential for precision sensing and time-keeping applications.
- Stability can be influenced by thermal fluctuations, mechanical vibrations, and cavity perturbations.
Factors Influencing Laser Linewidth
- Spontaneous Emission: Spontaneous emission noise from excited atoms or ions broadens the laser linewidth.
- Phase Noise: Phase fluctuations contribute to the spectral width of the laser.
- Environmental Factors: Mechanical vibrations, temperature fluctuations, and optical feedback can cause linewidth broadening.

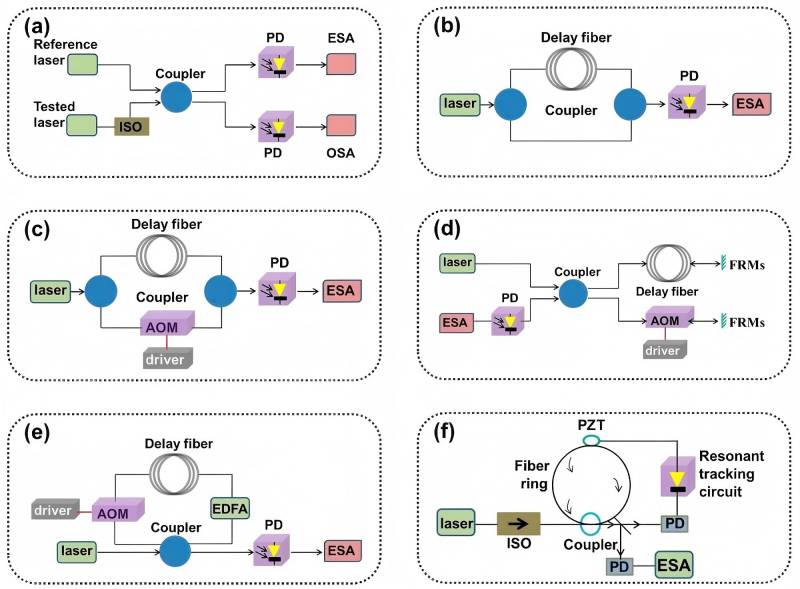

What are the Principles of Laser Linewidth Test?
Accurate measurement of laser linewidth is essential for characterizing laser performance. Several methods are employed, each with its principles and suitable applications:
1. Direct Spectral Analysis:
This method involves analyzing the laser’s emission spectrum using a high-resolution optical spectrum analyzer (OSA). The OSA measures the intensity distribution across different wavelengths, allowing the determination of the FWHM. This method is straightforward but limited by the resolution of the OSA, making it less suitable for ultra-narrow linewidth lasers.
2. Heterodyne (Beat Frequency) Method:
In this technique, the test laser is combined with a reference laser of known linewidth. The interference (beat) signal produced by mixing the two beams is detected using a photodetector and analyzed with a radio-frequency spectrum analyzer (RSA). The linewidth of the test laser is extracted from the beat signal’s linewidth, considering the reference laser’s contribution. This method offers high precision and is suitable for measuring very narrow linewidths.
3. Delayed Self-Heterodyne Method:
This method involves splitting the laser beam into two paths: one is optical fiber delay line, and the other is frequency-shifted using an acousto-optic modulator. The two beams are then recombined to produce a beat signal, which is analyzed to determine the linewidth. This technique is effective for measuring ultra-narrow linewidths and does not require a separate reference laser.
4. Phase Noise Measurement:
Phase noise, representing the frequency fluctuations of the laser, is measured using specialized equipment. The phase noise spectrum provides information about the linewidth, as there is a direct relationship between phase noise and linewidth. This method is particularly useful for characterizing lasers used in high-precision applications where phase stability is critical.
Equipment Required for Laser Linewidth Test
Accurate linewidth measurement necessitates specialized equipment:
- Optical Spectrum Analyzer (OSA): An OSA measures the optical power distribution over a range of wavelengths, providing a direct measurement of the laser’s spectral profile. High-resolution OSAs are essential for resolving narrow linewidths.
- Radio-Frequency Spectrum Analyzer (RSA): An RSA analyzes the electrical signal obtained from photodetectors in heterodyne and self-heterodyne setups, allowing measurement of beat signals corresponding to the laser linewidth.
- Delay Line Interferometer: This device introduces a controlled time delay between two parts of the laser beam, enabling self-heterodyne measurements. Optical fiber delay lines are commonly used to achieve the necessary delay.
- Phase Noise Analyzer: A phase noise analyzer measures the phase fluctuations of the laser signal, providing data to calculate the linewidth.
- Auxiliary Equipment: Components such as optical couplers, isolators, and acousto-optic modulators are used to manipulate the laser beam in various measurement setups.
Role of Laser Linewidth Test in Optical Fiber Communication
In optical fiber communication systems, laser linewidth significantly impacts performance due to factors like dispersion, nonlinear effects, and phase noise.
1. Dispersion:
Chromatic dispersion causes different frequency components of the laser to travel at different speeds in the fiber, leading to pulse broadening and inter-symbol interference. Narrow linewidth lasers minimize this effect, preserving signal integrity over long distances.
2. Nonlinear Effects:
Nonlinear phenomena such as four-wave mixing and self-phase modulation are exacerbated by broader linewidths, causing crosstalk and signal distortion. Using narrow linewidth lasers reduces these nonlinear interactions, enhancing system performance.
3. Phase Noise Impact:
Phase noise in lasers contributes to signal degradation in high-speed optical communication. A narrow linewidth laser reduces phase noise, ensuring stable signal transmission, which is particularly crucial for advanced modulation formats in coherent optical communication systems.

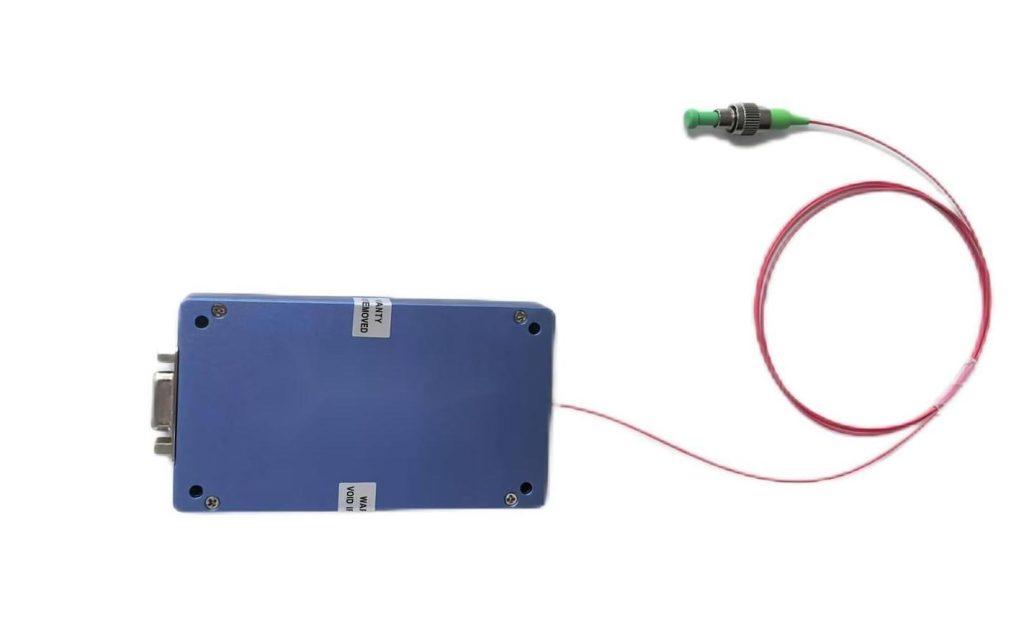

4. Narrow Linewidth Lasers in Coherent Optical Communication:
Coherent optical communication systems, which use phase and amplitude modulation, require lasers with exceptionally narrow linewidths to maintain signal integrity. Narrow linewidth lasers enable:
- Extended Transmission Distance: Reduced phase noise minimizes distortions over long-haul optical links.
- Higher Data Capacity: Stable laser sources support high-order modulation formats, increasing spectral efficiency.
- Lower Bit Error Rate (BER): Improved phase coherence reduces detection errors, enhancing overall system performance.
5. Importance in Dense Wavelength Division Multiplexing (DWDM):
DWDM systems rely on precise wavelength stability to pack multiple signals into a single fiber. Narrow linewidth lasers provide:
- Reduced Channel Crosstalk: Enhanced spectral purity prevents interference between closely spaced channels.
- Improved Network Scalability: Better stability allows for higher channel densities, maximizing fiber bandwidth utilization.
Laser linewidth is a fundamental parameter that influences coherence, stability, and performance across various applications, particularly in optical fiber communication. Understanding and accurately measuring laser linewidth is essential for optimizing laser sources used in high-precision applications. With advancements in laser technology, ultra-narrow linewidth lasers continue to play a crucial role in enhancing the performance of modern optical communication systems, scientific research, and industrial applications. By employing appropriate measurement techniques and ensuring high spectral purity, engineers and researchers can achieve optimal laser performance tailored to their specific needs.
