Manual Adjustable Fiber Delay Line
The third generation manual fiber delay line (Optical fiber delay line) is a unique delay mechanism with high precision and low insertion loss, continuous and reliable operation; a wide delay range can reach an order of ps & fs, high reliability, low polarization related loss (<0.1dB) and low insertion change (<0.5dB, simple and compact structure). It can be customized according to the user needs of the product requirements.
Characteristics of Manual Adjustable Fiber Delay Line
- Unique delay machinery, working continuously and reliably, wide delay range, customized delay accuracy to a user request, delay accuracy up to orders of magnitude ps & fs.
- High reliability, low polarization-associated loss (<0.1dB)
- Lower insertion loss change (<0.5dB)
- Simple and compact structure, good repeatability, excellent performance.
Applications of Manual Adjustable Fiber Delay Line
- Radar test, calibration
- Controlled antenna array
- Optical coherence tomography
- X radiography
- Fourier spectroscopic analysis
- Light interferometry
- Fibre optic sensor
- Optical time-domain effect measurement
- Optical buffer in a bit-calibrated optical network for time-division multiplexing (OTDM) of an optical network
- Differential Group Delay (OMD)
- Multiplexing at compensation time hours
- Fibre optic interferometer
Parameter of Manual Adjustable Fiber Delay Line
| parameter | metric |
| wavelength coverage | C-band, L-band or other wavelengths |
| Light delay range | 0~100ps continuous for 100ps model |
| 0~330 ps continuousfor 330ps model | |
| 0~660ps continuous for 660ps model | |
| 0~1200 ps continuous for 1200ps model | |
| 0~1500 ps continuous for 1500ps model | |
| 0~3000 ps continuous for 3000ps model | |
| 0~4000 ps continuous for 4000ps model | |
| Read-scale resolution | 10.16fs |
| insertion loss | typ.0.8dB,max 1.2dB |
| Insertion loss parameter changes | ±0.1 dB over the entire range for the 100ps model |
| ±0.15dB over the entire range for the 330ps model | |
| ±0.15 dB over the entire range for the 660ps model | |
| ±0.5 dB over the entire range for the 1500ps model | |
| return loss | >55 dB |
| extinction ratio | >18 dB |
| Light withstand power | max 500mw |
| working temperature | -10~80℃ |
| Storage temperature | -40~80℃ |
| Fiber type | Conning SMF-28,or FujikuraPMPanda fiber |
| Size (L x W x H) | 81.5x 34x 45mm for 100ps model |
| 120x 38x 45mm for 330ps model | |
| 164x 38x 45mm for 660ps model | |
| 170x 48x 45mm for 1200ps model | |
| 184x 48x 45mm for 1500ps model | |
| XX for 3000ps model for 4000ps model |

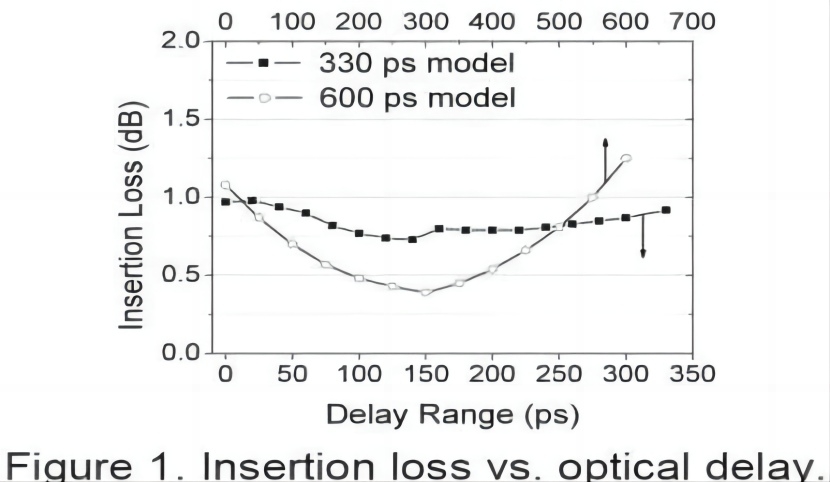

Performance Value of Manual Adjustable Fiber Delay Line

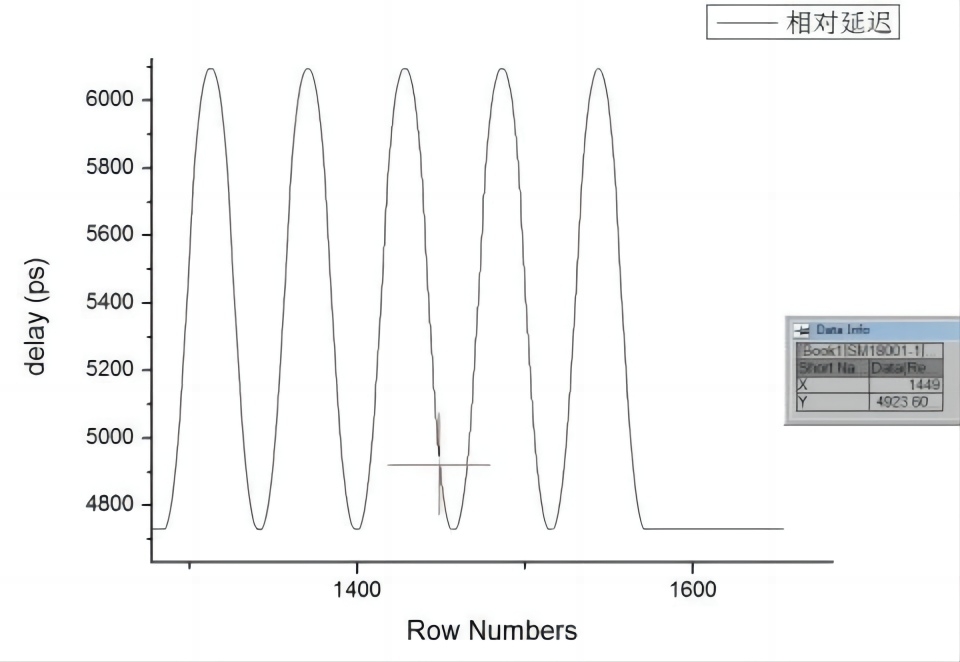

Delayed Drawing of Manual Adjustable Fiber Delay Line
Ordering Information of Manual Adjustable Fiber Delay Line
| LT-M | delay | Wavelength | Fiber type | Fiber length | junctor |
| 10=100ps 33=330ps 66=660ps 120=1200ps 150=1500ps 300=3000ps 400=4000ps 500=1500ps XX=others | C=C-band L=L-band 532=532nm 633=633nm 780=780nm 840=840nm 850=850nm 980=980nm 103=1030nm 106=1060nm 131=1310nm 148=1480nm 165=1650nm | S9=SMF 900um M5=MMF 50/125/900 M6=MMF 62.5/125/900 PM=PM Panda XX=others | 1=1.0m 2=2.0m X=others | NE=None FA=FC/APC FC=FC/PC SA=SC/APC SC=SC/PC ST=ST/PC LA=LC/APC LC=LC/PC XX=others |
Direction for use:
- Link the optical fiber COM end to the light source, and pay attention to ensure the link adaptation and the clean core end surface
- Please adjust the use within the effective range, and strictly exceed the use range
- It is strictly prohibited to drag optical fiber and small radian curling optical fiber and cause optical fiber damage
- If there is a locking mechanism, you only need to debug the target amount and lock the precision screw on the rocker with the inner hexagonal, that is to lock the target parameters
Container loading list:
- A delay line;
- One copy of the manual;
- One test report
