Optical Delay Lines: Manual vs. Electric

Optical delay lines (ODLs) are sophisticated devices designed to manipulate the propagation of light by introducing a time delay to light signals. This delay is achieved by altering the path length that the light travels, a principle fundamental to various scientific and engineering applications. Optical delay lines (ODLs) are particularly crucial in optical communication systems, where they enable the synchronization and processing of signals. They also play a pivotal role in interferometry and spectroscopy, enhancing the precision of measurements in these fields. The ability to control the delay of light signals allows for better signal management, data transmission, and the execution of precise scientific experiments.

Optical Delay Line Working Principles

The core concept behind an optical delay line is the manipulation of the optical path length. This is typically achieved by guiding light through a medium, such as an optical fiber or a free-space optical path, where the light’s path can be extended. The extended path results in a delay, which can be adjusted to suit different applications. This delay is critical in applications that require the synchronization of optical signals or the storage of optical information. By precisely controlling the path length, ODLs ensure that signals arrive at the correct time, which is essential in high-speed data transmission and accurate scientific measurements.

Key Applications of Optical Delay Lines

ODLs find their applications across a wide spectrum of fields, including:

• Telecommunications: Here, ODLs are used for signal delay and storage, essential for the proper functioning of optical communication networks. They enable the synchronization of signals and the management of bandwidth in high-speed data transmission systems.
• Scientific Research: In interferometry, ODLs are crucial for the precise control of optical path differences, necessary for studying physical phenomena such as the measurement of small displacements or changes in refractive index. In spectroscopy, they are used for time-resolved spectroscopy, allowing for the analysis of fast optical processes.
• Military and Aerospace: ODLs are employed in radar systems and optical signal processing for defense applications. They help in the precise timing of signals, which is critical in radar systems for accurate target detection and tracking.

Types of Optical Delay Lines

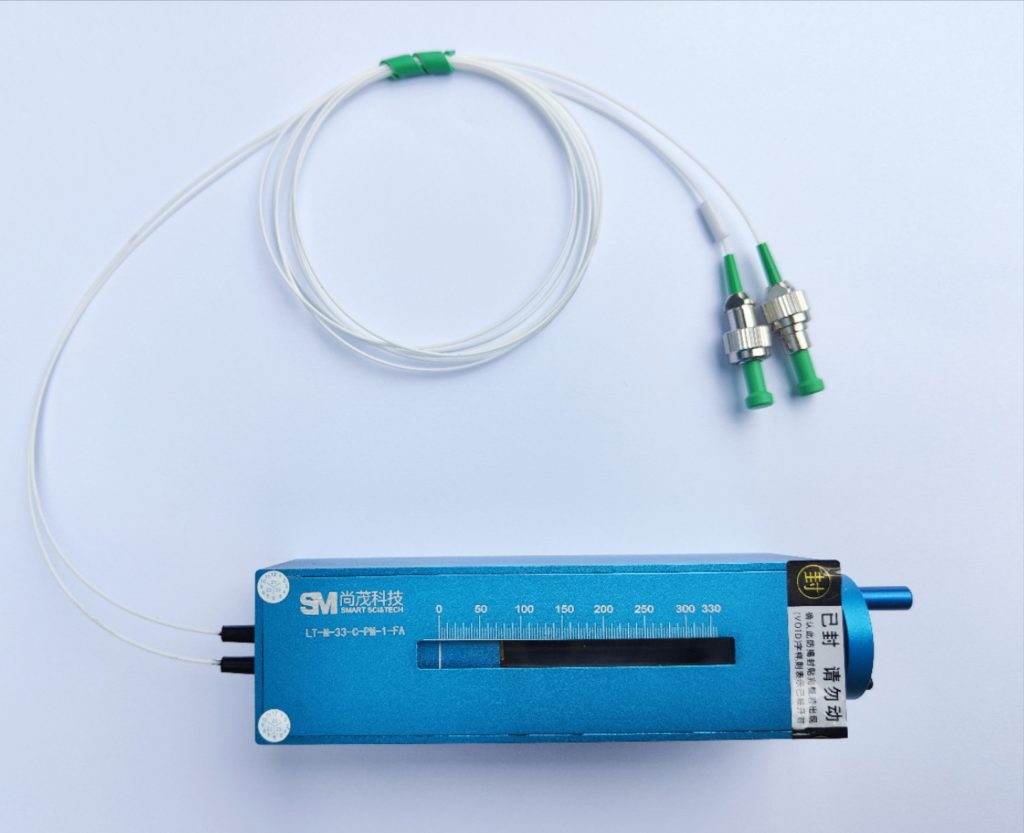

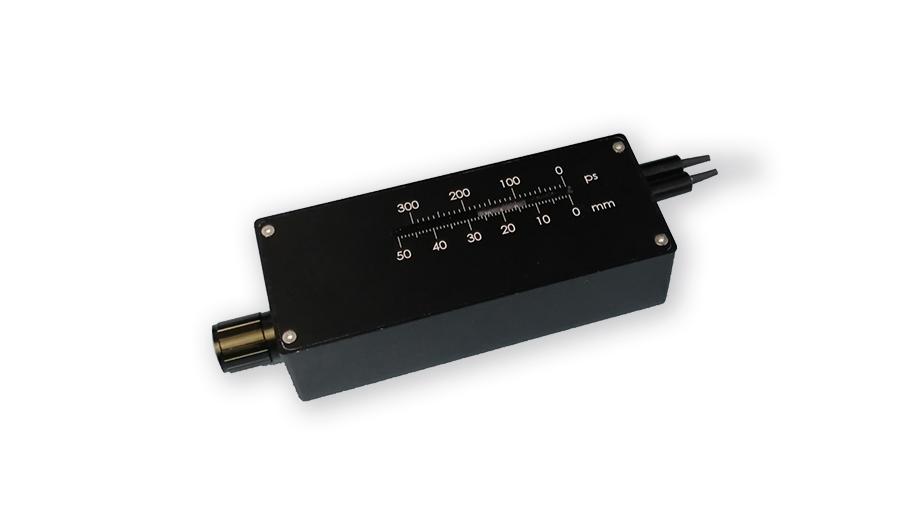

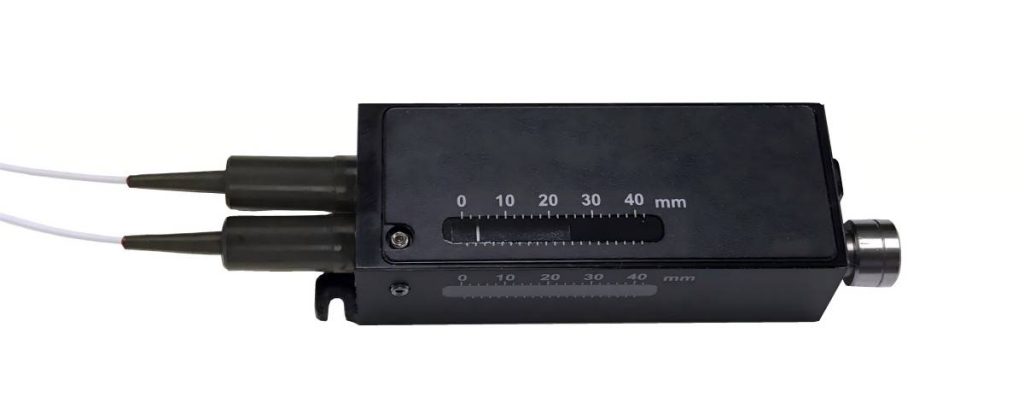

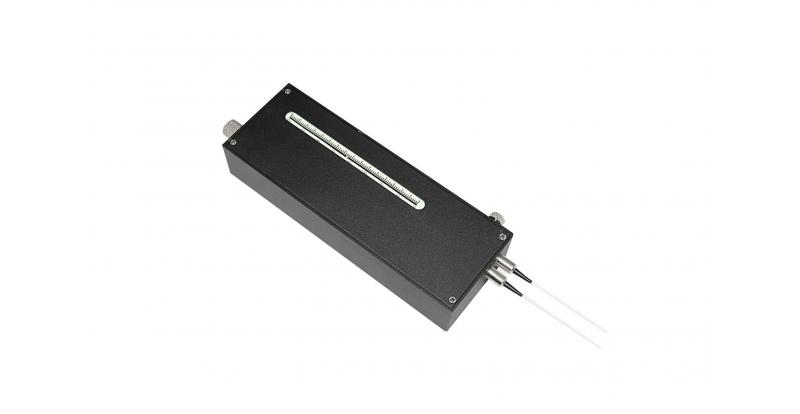

1. Manual Adjustable Fiber Delay Lines

Manual adjustable fiber delay lines represent the traditional approach to introducing variable delays in optical signals. These systems typically consist of a length of optical fiber that can be manually adjusted to change the optical path length. The fiber is often coiled or wound around a spool or drum, which can be physically manipulated to increase or decrease the fiber length. By adjusting the fiber’s length, the delay time can be precisely controlled.

A. Operation Mechanism and Limitations

The operation of manual adjustable fiber delay lines is relatively straightforward. By changing the length of the fiber in the coil, the path length of the light traveling through the fiber is altered. This change in path length directly affects the delay time of the light signal. However, this method has several limitations:

• Speed: Manual adjustments are inherently slow, which can be problematic in applications that require real-time adjustments or fast response times.
• Precision: While manual adjustments can be precise, they often lack the fine-tuning capabilities required for some applications, particularly in high-precision scientific research.
• Reliability: Frequent manual adjustments can lead to mechanical wear and tear, potentially affecting the reliability and longevity of the system.

B. Case Studies and Practical Applications

Manual adjustable ODLs have been widely used in various applications, including laboratory settings for interferometry experiments. For instance, in Michelson interferometers, manual adjustments allow for the study of physical phenomena such as the measurement of small displacements or changes in refractive index. This is possible because of the precise control over the optical path difference that can be achieved through manual adjustments. In addition, these delay lines are used in educational settings to demonstrate fundamental principles of optics and signal processing.

C. Advantages and Challenges

The advantages of manual adjustable ODLs include their simplicity and lower cost compared to more advanced systems. They are well-suited for applications that do not require real-time adjustments or very fine control over delays. However, the challenges are significant. The limitations in speed, precision, and reliability can be restrictive in applications that demand high performance. The inability to provide real-time adjustments makes manual optical delay lines less suitable for dynamic environments such as telecommunications and high-speed data processing.

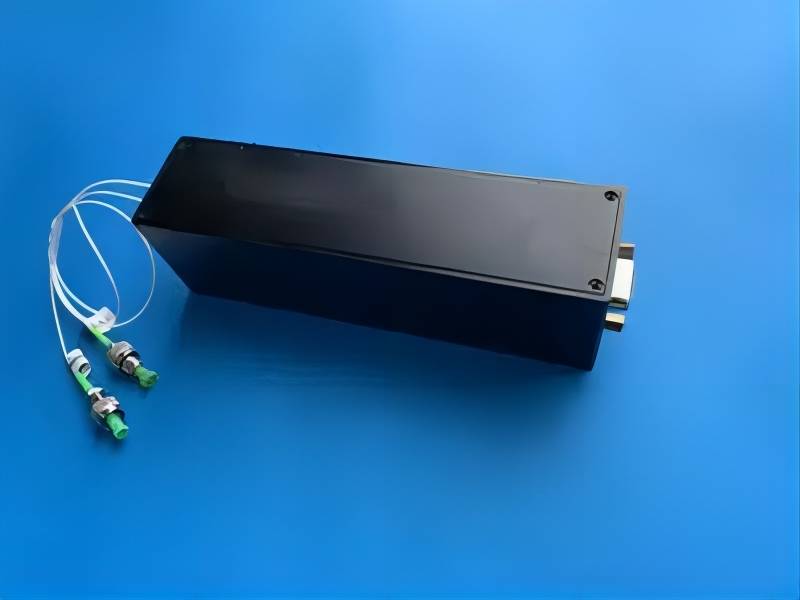

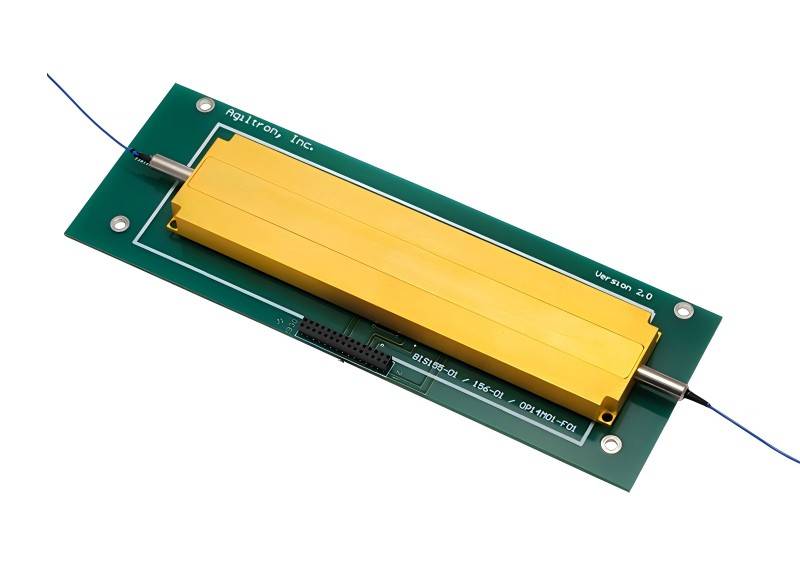

2. Electric Optical Fiber Delay Lines

Electric optical fiber delay lines offer a modern solution that addresses the limitations of manual systems. These devices utilize electrical signals to control the optical path length, enabling faster, more precise, and dynamic control over delays. This is achieved through various mechanisms, including the use of electro-optic modulators or acousto-optic modulators, which can introduce phase changes in the optical signal. The development of electrically controlled optical delay lines (ODLs) has revolutionized the way delays are managed in optical systems, making them more versatile and adaptable to a wide range of applications.

A. How Electric Optical Fiber Delay Lines Work

In electric ODLs, the optical path length is altered by controlling the phase of the optical signal. This is typically done using electro-optic modulators or acousto-optic modulators. By applying an electrical signal to these modulators, the phase of the light can be shifted. This phase shift effectively changes the optical path length, thereby introducing a variable delay. This method allows for real-time adjustments and finer control over the delay, making it suitable for high-speed and high-precision applications.

B. Comparison with Manual Optical Delay Lines

Electric ODLs offer significant advantages over manual adjustable fiber delay lines, including:

• Speed: Electrically controlled systems can introduce delays much faster than manual systems, making them suitable for applications that require real-time adjustments or high-speed data processing.
• Precision: These systems offer finer control over delays, which is crucial in applications that demand high precision, such as in scientific research or high-speed telecommunications.
• Integration: Electric ODLs can be more easily integrated with other optical systems and automated control systems, enhancing their versatility and functionality.

C. Advantages, Limitations, and Applications

Electric ODLs have several advantages over their manual counterparts:

• High-speed Data Processing: These systems are particularly advantageous in optical communication networks, where they can manage signal delays and ensure synchronization, enabling higher data rates and more efficient data transmission.
• Practical Applications: In applications that require real-time adjustments, such as in optical signal processing or high-speed data processing, electric ODLs provide the necessary speed and precision.
• Integration with Advanced Systems: The ability to integrate with other optical systems and automated control systems makes electrically controlled ODLs more versatile and adaptable to a wide range of applications.

However, electric ODLs also have their limitations:

• Complexity: These systems are generally more complex and require sophisticated control electronics, which can increase the cost and complexity of the system.
• Integration Challenges: While integration is possible, it can be challenging due to the need for compatibility with various optical and electronic components.
• Signal Degradation: In some cases, the use of electro-optic or acousto-optic modulators can introduce signal degradation, particularly phase noise, which can affect the overall performance of the system.

Despite these limitations, electric ODLs are widely used in various applications, including telecommunications, scientific research, and defense systems, where their advantages outweigh the challenges.

Electric Optical Fiber Delay Lines in Practice

1. Examples of Successful Implementations

Electric optical fiber delay lines have been successfully implemented in various applications, demonstrating their effectiveness and versatility:

• Telecommunications: In optical communication networks, electric ODLs are used for managing signal delays and ensuring synchronization, which is crucial for maintaining high data transmission rates and efficiency.
• Scientific Research: In medical imaging, particularly in optical coherence tomography (OCT), electric ODLs are employed to achieve high-resolution imaging, allowing for detailed analysis of biological tissues and structures.
• Defense Systems: In radar systems and other defense applications, electric ODLs provide precise timing of signals, which is essential for accurate target detection and tracking.

2. Impact on Optical Communication and Signal Processing

The impact of electric ODLs on optical communication and signal processing has been profound. By enabling higher data rates, improved synchronization, and more efficient data transmission, these systems have revolutionized the field of telecommunications. In addition, their ability to provide real-time adjustments and fine control over delays has enhanced the performance of optical signal processing systems, leading to advancements in various applications.

3. Analysis of Performance Metrics

When evaluating the performance of electric optical fiber delay lines, several key metrics are considered:

• Delay Range: The range of delay times that can be introduced by the system is a critical factor, particularly for applications that require a wide range of delays.
• Resolution: The ability to make fine adjustments to the delay is essential for high-precision applications, such as scientific research and high-speed data processing.
• Stability: The stability of the delay introduced by the system over time is important for ensuring consistent performance and reliability.
• Signal Degradation: Minimizing signal degradation, such as phase noise, is crucial for maintaining the overall performance and accuracy of the system.

Conclusion

The evolution of optical delay lines from manual adjustable systems to advanced electrically controlled systems represents a significant advancement in optical technology. Manual adjustable fiber delay lines provided a foundational approach to controlling optical delays but were limited by their speed, precision, and reliability. The advent of electric optical fiber delay lines has addressed these limitations, offering faster, more precise, and dynamic control over optical delays. As technology continues to advance, electric ODLs will become increasingly important in various fields, from telecommunications to scientific research and defense systems.
