Technical FAQs for Understanding Acousto-optic Q-Switches
Technical FAQs for Understanding Acousto-optic Q-Switches
Acousto-optic Q-switches are essential components in laser systems, enabling precise control over laser pulse duration, energy, and repetition rate. By utilizing the interaction between sound waves and light, these devices offer a versatile and reliable solution for shaping laser output. This article delves into the key parameters of acousto-optic Q-switches, providing detailed explanations to aid in understanding their operation and applications.

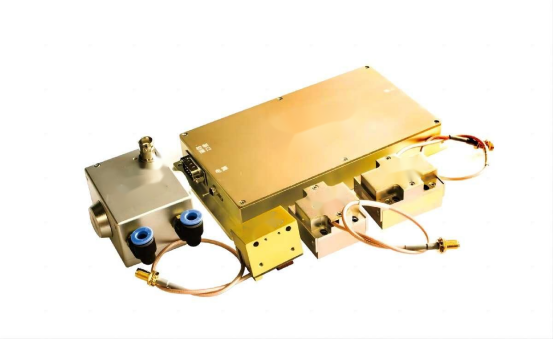

What are the Key Parameters of an Acousto-Optic Q-Switch?
Several critical parameters define the performance and suitability of an acousto-optic Q-switch for specific laser applications:
1. Acousto-Optic Material
The choice of acousto-optic material significantly impacts the device’s efficiency and performance. Common materials include:
- Tellurium Dioxide (TeO2): Offers high diffraction efficiency and low acoustic attenuation, making it suitable for a wide range of applications.
- Lithium Niobate (LiNbO3): Provides excellent electro-optic and acousto-optic properties, enabling high-speed modulation and frequency shifting.
- Mercuric Iodide (HgI2): Exhibits high diffraction efficiency and low acoustic loss, making it ideal for high-power laser systems.

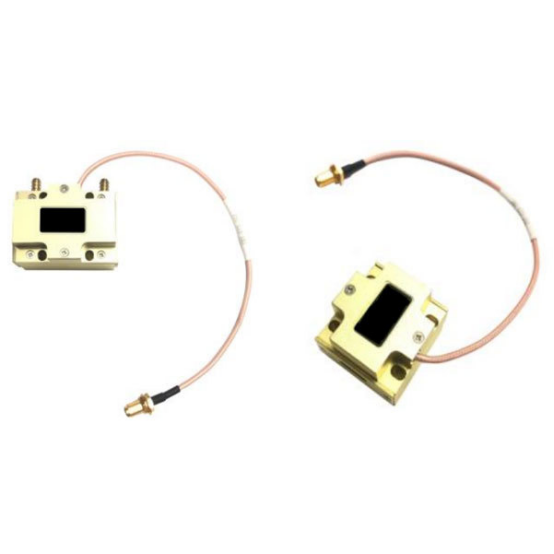

2. Acoustic Transducer
The acoustic transducer converts electrical signals into acoustic waves, which interact with the light beam. Key factors to consider include:
- Frequency Range: Determines the modulation speed and range of achievable pulse durations.
- Power Handling Capability: Impacts the maximum laser power that can be switched.
- Acoustic Impedance Matching: Ensures efficient energy transfer from the transducer to the acousto-optic material.
3. Diffraction Efficiency
Diffraction efficiency quantifies the fraction of incident light that is diffracted by the acoustic wave. A higher diffraction efficiency leads to more efficient Q-switching and lower insertion loss.
4. Acousto-Optic Figure of Merit (M2)
M2 characterizes the material’s acousto-optic properties and its suitability for Q-switching applications. A higher M2 value indicates better performance.
5. Optical Aperture
The optical aperture defines the maximum beam diameter that can be efficiently switched. It is crucial to match the aperture to the laser beam size to avoid diffraction losses and reduced performance.
What is the Typical Operating Wavelength of an Acousto-Optic Q-Switch?
Acousto-optic Q-switches are highly versatile devices, capable of operating across a broad spectrum of wavelengths, ranging from ultraviolet to infrared. The optimal performance and efficiency of these devices can vary depending on the specific wavelength.
Here are some of the most common operating wavelengths for acousto-optic Q-switches:
1. Near-Infrared
- 1064 nm: This wavelength is commonly used in Nd:YAG lasers, which are widely employed in various applications, including materials processing, scientific research, and medical procedures.
- 1319 nm: This wavelength is often used in fiber lasers, which are known for their high efficiency and excellent beam quality.
- 1550 nm: This wavelength is commonly used in fiber-optic communication systems.
2. Visible
- 532 nm: This green wavelength is generated by frequency doubling of 1064 nm radiation and is commonly used in laser pointers and laser displays.
- 632.8 nm: This red wavelength is commonly used in He-Ne lasers, which are often used in laboratory experiments and metrology applications.
3. Ultraviolet
- 355 nm: This ultraviolet wavelength is generated by frequency tripling of 1064 nm radiation and is commonly used in materials processing and micromachining.
- 266 nm: This deep ultraviolet wavelength is generated by frequency quadrupling of 1064 nm radiation and is commonly used in microfabrication and semiconductor processing.
The choice of operating wavelength for an acousto-optic Q-switch ultimately depends on the specific requirements of the laser system and the desired application. By carefully selecting the appropriate acousto-optic material and optimizing the device design, it is possible to achieve high performance and efficiency across a wide range of wavelengths.
What is the Typical Modulation Depth of an Acousto-Optic Q-Switch?
The modulation depth, often referred to as diffraction efficiency, is a crucial parameter that quantifies the effectiveness of an acousto-optic Q-switch in diverting incident light into a diffracted beam. A higher modulation depth translates to a more efficient Q-switching process, leading to shorter pulse durations and higher peak powers.
Typically, acousto-optic Q-switches exhibit modulation depths ranging from 50% to 90%. This range is influenced by several factors, including:
- Acousto-optic material: The intrinsic properties of the material, such as its acousto-optic figure of merit, impact the maximum achievable modulation depth.
- Acoustic power: Higher acoustic power applied to the transducer results in a stronger acoustic wave, leading to increased diffraction efficiency.
- Optical design: The geometry of the optical components, including the incident and diffracted beam angles, can affect the modulation depth.
- Operating wavelength: The modulation depth can vary with wavelength, as the acousto-optic properties of the material may change.
To achieve optimal performance, it is essential to carefully select the acousto-optic material, optimize the acoustic power, and refine the optical design. By doing so, acousto-optic Q-switches can deliver high modulation depths, enabling precise control over laser pulse parameters and facilitating a wide range of applications.
What is the Typical Rise/Fall Time of an Acousto-Optic Q-Switch?
The rise and fall times of an acousto-optic Q-switch define the speed at which the laser cavity Q-factor can be switched between its low and high states. These parameters are crucial for determining the minimum achievable pulse duration and the maximum achievable repetition rate of the laser system.
Several factors influence the rise and fall times of an acousto-optic Q-switch:
- Acoustic transit time: The time taken for the acoustic wave to propagate through the acousto-optic material limits the speed of the Q-switching process.
- Transducer response time: The electrical-to-acoustic conversion speed of the transducer can also impact the rise and fall times.
- Optical design: The geometry of the optical components and the interaction length between the light and acoustic wave can affect the switching speed.
Typically, the rise and fall times of acousto-optic Q-switches range from a few nanoseconds to tens of nanoseconds. By optimizing the acoustic transducer design, the acousto-optic material selection, and the optical configuration, it is possible to achieve faster rise and fall times, enabling the generation of shorter and more intense laser pulses.
What is the Typical Damage Threshold of an Acousto-Optic Q-Switch?
The damage threshold of an acousto-optic Q-switch represents the maximum optical intensity that the device can withstand without sustaining permanent damage. Exceeding this threshold can lead to various forms of damage, including optical damage to the acousto-optic material, anti-reflective coatings, or the transducer.
Several factors influence the damage threshold of an acousto-optic Q-switch, including:
- Wavelength: The damage threshold can vary with wavelength, as different materials exhibit varying levels of absorption and nonlinear optical effects at different wavelengths.
- Pulse duration: Shorter pulses tend to have higher peak intensities, which can increase the likelihood of damage.
- Beam profile: A non-uniform beam profile can lead to localized regions of high intensity, increasing the risk of damage.
- Material quality: Defects and impurities in the acousto-optic material can lower the damage threshold.

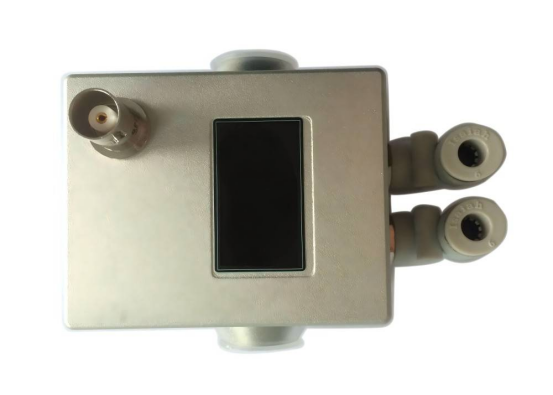

- Cooling: Adequate cooling of the device can help to dissipate heat and prevent thermal damage.
Common damage threshold values for acousto-optic Q-switches range from tens to hundreds of megawatts per square centimeter (MW/cm²). For example:
- TeO2: 100-200 MW/cm²
- PbMoO4: 50-100 MW/cm²
- SrTiO3: 30-50 MW/cm²
To maximize the lifespan of an acousto-optic Q-switch, it is crucial to operating the device within its specified damage threshold limits. This can be achieved by carefully controlling the laser parameters, such as pulse energy, repetition rate, and beam profile. Additionally, proper cooling and maintenance of the device are essential to ensure long-term reliability.
Final Thoughts
Acousto-optic Q-switches are versatile and reliable components that play a crucial role in shaping the output of pulsed laser systems. By understanding their key parameters, engineers and researchers can select and optimize Q-switches for specific applications, such as materials processing, scientific research, and medical procedures. As technology advances, we can expect further improvements in the performance and capabilities of acousto-optic Q-switches, enabling even more sophisticated and powerful laser systems.
