The Technology Behind Fiber Acousto-Optic Modulators
Fiber Acousto-Optic Modulators (Fiber AOMs) are sophisticated devices that leverage the acousto-optic effect to modulate the frequency, and amplitude of light waves. These modulators are essential in various high-precision applications, from controlling laser outputs to managing light signals in communication systems. This article delves into the structure, components, materials, and functioning of fiber AOMs, highlighting their significance and potential advancements.
Structure and Components of Fiber AOM

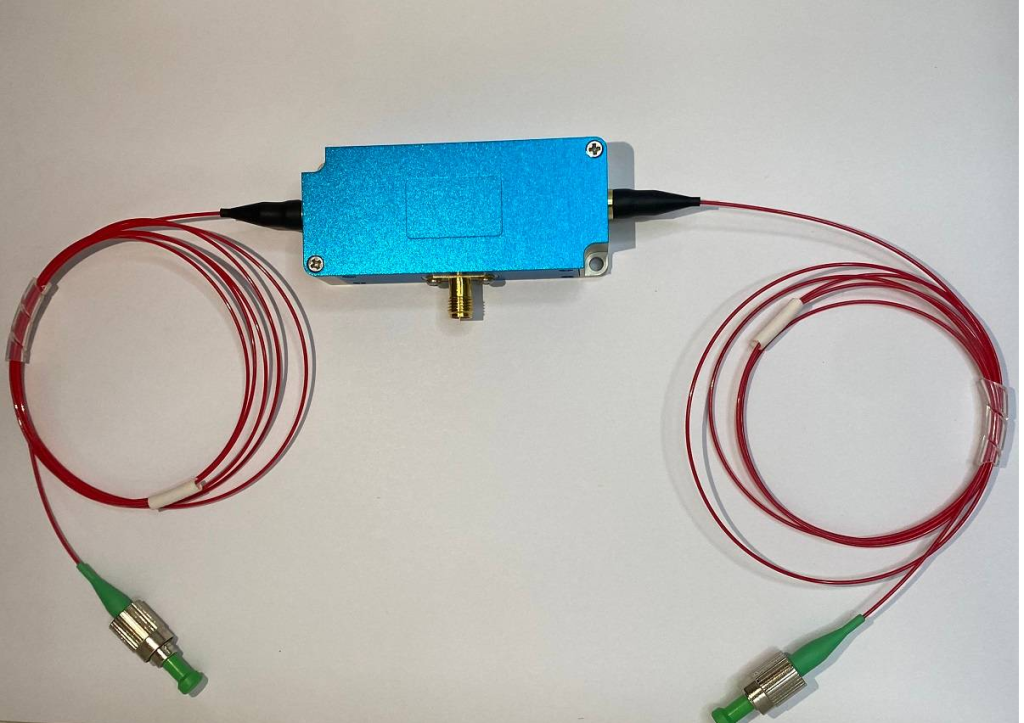

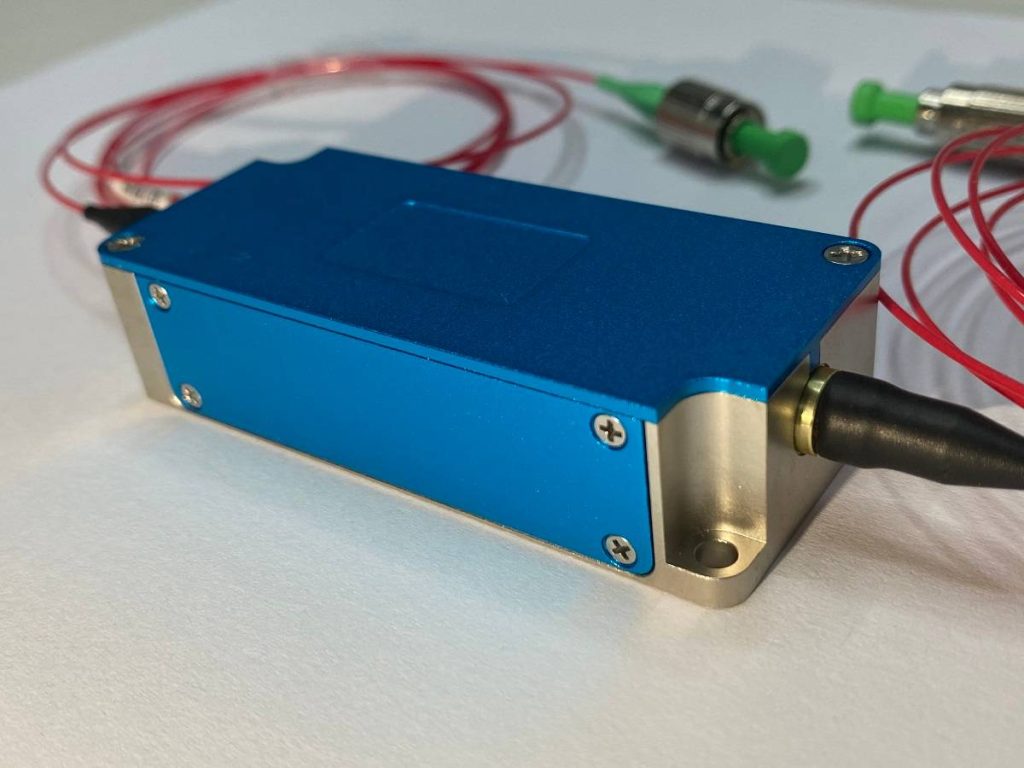

A Fiber AOM typically consists of several core components: an acousto-optic crystal, optical collimators, and a high-precision mechanical structure. These components work together to achieve precise control over laser output, enabling fine modulation at the nanosecond level.
Key Components of Fiber Acousto-Optic Modulators
A fiber AOM consists of several critical components that work in concert to achieve precise light wave modulation. These components include:
1. Acousto-Optic Crystals
Acousto-optic crystals are the heart of fiber AOMs, serving as the medium where the acousto-optic effect occurs. The crystals are engineered to exhibit a periodic refractive index modulation when subjected to acoustic waves, enabling the modulation of light signals passing through the crystal. Commonly used acousto-optic crystal materials, such as lithium niobate and lithium tantalate, are chosen for their high acousto-optic figure of merit and low acoustic absorption, ensuring efficient modulation of light signals.
2. Piezoelectric Transducers
Piezoelectric transducers play a critical role in generating the acoustic waves necessary for the acousto-optic effect. These devices, typically made from piezoelectric materials like quartz or lead zirconate titanate (PZT), convert electrical signals into mechanical vibrations. When an RF signal is applied to the piezoelectric transducer, it causes the material to expand and contract, creating acoustic waves that propagate through the acousto-optic crystal.
3. Acoustic Wave Propagation System
The acoustic wave propagation system ensures that the acoustic waves generated by the piezoelectric transducer are effectively transmitted to the acousto-optic crystal. This system often includes components like acoustic waveguides and acoustic lenses that direct the acoustic waves to the crystal’s surface, facilitating the acousto-optic interaction.
4. Optical System
The optical system in a fiber AOM is designed to control the transmission and modulation of the light signals. It typically comprises a beam expander, which increases the diameter of the incident light beam, improving diffraction efficiency, and a focusing system that directs the light through the acousto-optic crystal. These components are essential for maximizing the interaction between the light and acoustic waves, thereby enhancing the modulation efficiency of the fiber AOM.
5. Electronic Drive System
The electronic drive system is responsible for generating and controlling the RF signals that drive the piezoelectric transducer. This system often includes an RF driver and electronic amplifiers that provide the necessary power and frequency stability for the acoustic wave generation. The precision and stability of the electronic drive system are critical for achieving high-performance modulation in Fiber AOMs.
Common Acousto-Optic Crystal Materials in Fiber AOMs
The choice of acousto-optic crystal material is pivotal in determining the performance and efficiency of fiber AOMs. These materials are selected based on their acousto-optic quality factor (M^2 value), which is a critical parameter for evaluating the suitability of a crystal for acousto-optic applications. Below are detailed descriptions of the most commonly used acousto-optic crystal materials:
- Tellurium Dioxide (TeO2): TeO2 is widely used in acousto-optic modulators, deflectors, and tunable filters due to its high elastic coefficient and refractive index. It offers high diffraction efficiency, broad bandwidth, and fast beam deflection capabilities, making it suitable for various high-performance applications.
- Bismuth Germanate (GeBO3): GeBO3 is known for its excellent acousto-optic properties in specific wavelength ranges. It is often employed in the manufacture of high-performance acousto-optic devices that require superior modulation characteristics.
- Lithium Tantalate (LiTaO3): LiTaO3 crystals are valued for their high nonlinear optical and electro-optic coefficients. They are frequently used in integrated optics and optical waveguides, where precise control over light modulation is required.
- Zinc Selenide (ZnSe): ZnSe crystals are notable for their good infrared transparency and high acousto-optic quality factor. They are ideal for use in infrared band modulators, where efficient modulation of infrared light is necessary.
How Piezoelectric Transducers Work in Fiber Acousto-Optic Modulators
In a fiber AOM, the piezoelectric transducer plays a critical role by converting RF signals into mechanical vibrations, which are then transformed into acoustic waves. The piezoelectric materials used in the transducer deform when subjected to an electric field, a phenomenon known as the piezoelectric effect.
1. Conversion of RF Signal to Mechanical Vibrations
When an RF signal is applied to the electrodes of the piezoelectric transducer, the piezoelectric material alternates between expansion and contraction. This cyclic deformation generates mechanical vibrations, which are subsequently converted into acoustic waves. The efficiency of this conversion process is crucial for the overall performance of the Fiber AOM.
2. Interaction with Acousto-Optic Crystal
The generated acoustic waves propagate through the acousto-optic crystal, creating a periodic refractive index grid within the crystal. As the incident light wave passes through this grid, it undergoes diffraction, leading to changes in its path—this interaction between the light and acoustic waves results in the modulation of the light signal.
3. Design and Material Selection
The piezoelectric transducer’s design and material selection significantly impact the fiber AOM’s performance. Factors such as the efficiency of sound wave generation, frequency response, and coupling efficiency with the light wave are critical considerations. Optimizing these parameters enhances the modulator’s bandwidth, reduces insertion loss, and improves signal quality.
Optical System Components in Fiber Acousto-Optic Modulators
The optical system in a fiber AOM is comprised of several critical components that work together to ensure the efficient modulation of light signals:
- Incident Optical Fiber: This fiber guides the external light source into the modulator. Typically, single-mode fibers are used to ensure high-quality light signal transmission and minimal loss.
- Acousto-Optic Crystal: As previously discussed, the acousto-optic crystal serves as the core of the modulator, where the light signal interacts with the acoustic waves to achieve modulation. The choice of crystal material is critical for determining the modulator’s performance.
- Output Optical Fiber: This fiber transmits the modulated light signal from the acousto-optic crystal to the next stage of the optical system. The output fiber is usually chosen to be compatible with the incident fiber to ensure efficient signal transmission.
- Couplers: Couplers are used to effectively couple the light from the incident fiber into the acousto-optic crystal and from the crystal to the output fiber. These couplers typically include optical collimators and focusing systems to ensure precise alignment and minimal signal loss.

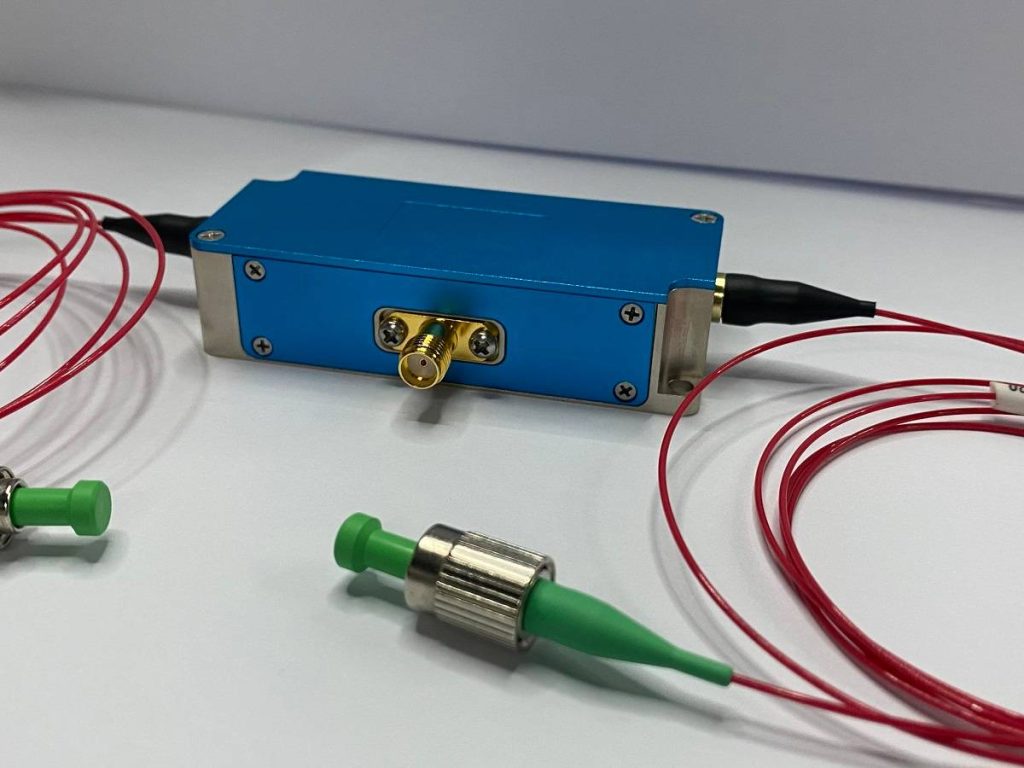

- RF Input Port: The RF input port delivers the RF signal to the piezoelectric transducer, which drives the generation of acoustic waves within the acousto-optic crystal.
Conclusion
In summary, fiber acousto-optic modulators represent a sophisticated approach to optical signal modulation, leveraging the acousto-optic effect for precise control over light wave characteristics. As technology continues to advance, the development of new acousto-optic crystal materials and the refinement of existing components will likely lead to the creation of even more efficient and versatile Fiber AOMs. These developments will undoubtedly open up new applications in fields such as telecommunications, sensing, and signal processing, further solidifying the role of Fiber AOMs as indispensable tools in the manipulation of light signals.
If you are looking for reliable and high-performance fiber AOM solutions, consider SMART SCI&TECH‘s range of fiber acousto-optic modulators, welcome feel free to contact us if you are in need.
