Understanding Acousto-Optic Modulators: 5 Performance Metric Questions
Acousto-optic modulators (AOMs) have become integral components in various optical systems, providing the ability to control light in terms of intensity, frequency, and direction. They utilize sound waves to interact with light, enabling functionalities that are essential in telecommunications, laser systems, and imaging technologies. This article delves into the fundamental principles behind AOMs, their operational characteristics, and key performance metrics, including transfer function, frequency shift, diffraction efficiency, access time, and rise time.

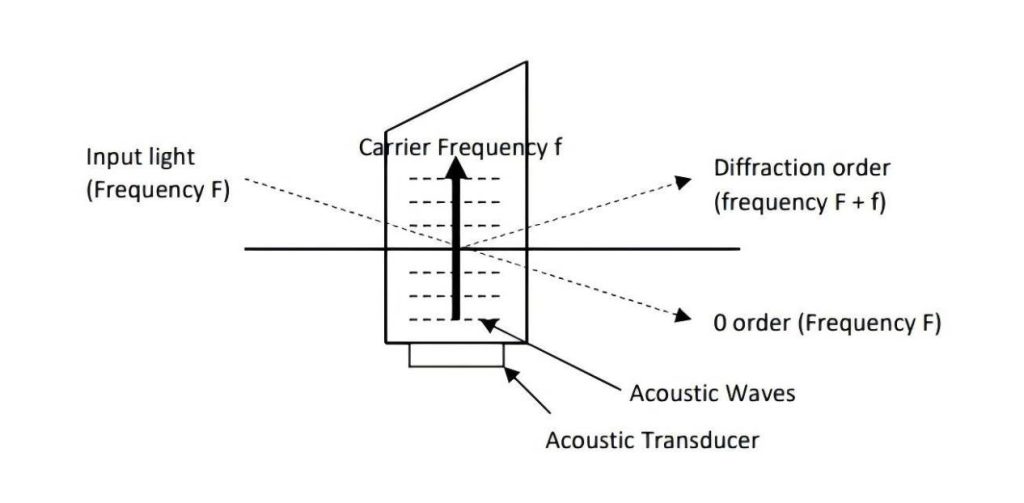

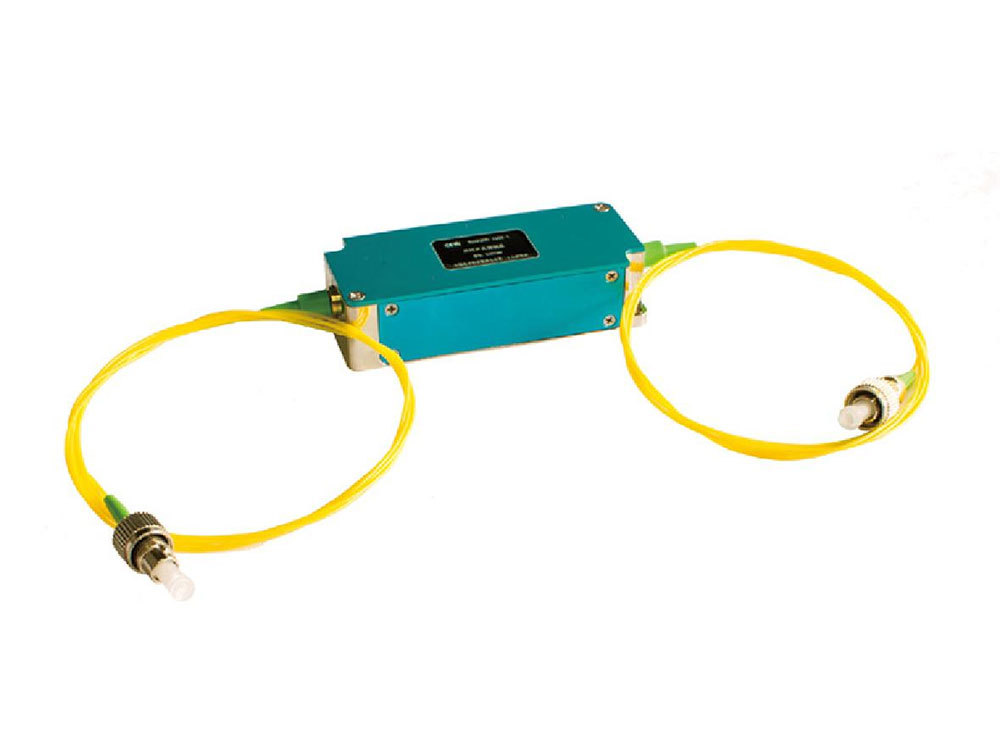

Principles of Acousto-Optic Modulation
The operation of an acousto-optic modulator (AOM) is based on the acousto-optic effect, where sound waves in an acousto-optic crystal induce optical modulation, leading to changes in the frequency, amplitude of light. Here’s how this process works:
When a sound wave propagates through the acoustic wave system and reaches the crystal, it creates a periodic variation in the crystal’s refractive index. This change in refractive index effectively forms a periodic grating structure within the crystal. As incident light enters the crystal, it encounters this dynamic grating and undergoes diffraction. By adjusting the frequency and amplitude of the sound wave, the characteristics of the grating can be modified, thus enabling precise control over the modulation of light.
The modulation effects include adjusting light intensity and frequency by altering the sound wave’s strength and frequency. For example, in intensity modulation, varying the refractive index within the acousto-optic crystal allows the light signal’s intensity to change correspondingly, enabling control over the brightness or power of the transmitted light. This process of interaction between sound and light in the AOM provides a powerful method for manipulating optical signals in various applications.
What is the Transfer Function of Acousto-Optic Modulators?
The transfer function of an AOM characterizes how the optical output signal responds to the input acoustic signal. It serves as a mathematical representation of the system’s behavior and is crucial for understanding the relationship between the input and output signals. The transfer function can be described as a linear time-invariant (LTI) system.
The transfer function can be generally represented as:
where:
f is the modulation frequency,
fc is the cutoff frequency, which denotes the frequency range within which the AOM operates effectively,
j is the imaginary unit, indicating the phase shift introduced by the system.
This function illustrates how the amplitude and phase of the output signal change in response to variations in the input frequency. Understanding the transfer function allows engineers to design AOMs for specific applications, ensuring that they meet the necessary performance criteria.
What is the Frequency Shift in Acousto-Optic Modulators?
One of the primary functions of an AOM is to produce a frequency shift in the incident light. This shift occurs due to the interaction of the light with the acoustic wave, effectively changing the frequency of the output light beam.
The frequency shift (Δf) can be quantified using the equation:
where:
ν is the speed of sound in the acousto-optic medium,
λ is the wavelength of the light,
fAOM is the frequency of the acoustic wave.
This relationship illustrates how the frequency shift depends on both the acoustic frequency and the properties of the medium. For example, in typical materials used for AOMs, the speed of sound can be several kilometers per second, and the wavelengths of light in the visible spectrum range from hundreds to thousands of nanometers. As a result, small changes in the acoustic frequency can lead to significant shifts in the optical frequency, making AOMs highly effective for fine-tuning light properties.
What is the Diffraction Efficiency of Acousto-Optic Modulators?
Diffraction efficiency is a critical performance metric for AOMs, indicating how effectively the device can redirect light into a desired diffraction order. It is defined as the ratio of the power in the diffracted beam to the power of the incident beam, expressed as a percentage.
Factors Influencing Diffraction Efficiency
The maximum diffraction efficiency achieved by an AOM depends on several factors, including:
Modulation Frequency: The efficiency typically varies with the frequency of the acoustic wave; optimal frequencies can maximize efficiency.
Wavelength of Light: The interaction between the light wavelength and the acoustic wave’s periodicity is crucial for achieving high diffraction efficiency.
Design and Material: The choice of acousto-optic material and the geometry of the AOM play significant roles in performance. Common materials include tellurium dioxide (TeO2) and lithium niobate (LiNbO3), known for their favorable acousto-optic properties.
In optimal conditions, AOMs can achieve diffraction efficiencies exceeding 90%, making them highly effective for applications requiring precise light control.
What is the Access Time of Acousto-Optic Modulators?
Access time is the duration required for an AOM to respond to a change in the input signal and produce a corresponding change in the output light signal. This parameter is critical in applications where rapid modulation is necessary, such as in telecommunications and fast imaging systems.
Factors Affecting Access Time
The access time is influenced by several factors, including:
Acoustic Wave Propagation Speed: The speed at which the acoustic wave travels through the medium directly impacts how quickly the modulator can respond.
Length of Interaction Region: The physical dimensions of the AOM, particularly the length over which the acoustic wave interacts with the light, also affect the access time.
Typical access times for AOMs can range from microseconds to milliseconds, depending on the specific design and application requirements. Faster access times are advantageous in high-speed applications, allowing for rapid changes in the optical output.
What is the Rise Time of Acousto-Optic Modulators?
The rise time of an AOM refers to the time taken for the output signal to reach a specified percentage of its final value after a step change in the input signal. It is an important parameter in characterizing the dynamic response of the modulator.
Key Considerations
The rise time can vary based on the modulation frequency, acoustic power, and material properties. In general, rise times are typically in the range of a few microseconds. Factors affecting rise time include:
Material Properties: The inherent characteristics of the acousto-optic material, such as acoustic velocity and elasticity, influence how quickly the modulator can respond.
Acoustic Wave Characteristics: The frequency and amplitude of the acoustic wave determine the efficiency and speed of the modulation process.
In applications requiring precise timing and synchronization, understanding the rise time is crucial for ensuring that the optical output meets the necessary performance criteria.
Final Words
Acousto-optic modulators are versatile devices that leverage the interaction between light and sound to provide precise control over optical signals. Understanding the key performance metrics—such as transfer function, frequency shift, diffraction efficiency, access time, and rise time—is essential for optimizing their use in various applications. As technology continues to advance, AOMs are expected to play an increasingly critical role in high-speed optics, telecommunications, and other fields, driving innovations that enhance performance and functionality in optical systems.
