Understanding Pulse Modulators and Their Types

In modern electronics, pulse modulation has become a cornerstone technology. This technique transforms analog signals into digital signals for easy processing, transmission, and storage. Pulse modulators are essential components in fields such as communications, radar, motor control, and even digital audio. By altering the characteristics of a pulse (such as amplitude, width, or frequency), these modulators encode information in ways that improve noise immunity, efficiency, and flexibility. This article delves into the various types of pulse modulation, their principles of operation, advantages, and applications.

1. Pulse Amplitude Modulation (PAM)

Pulse Amplitude Modulation (PAM) is a technique where the amplitude of each pulse varies according to the analog input signal. In PAM modulators, the pulse amplitude mirrors the signal’s amplitude, while other characteristics, such as pulse width and timing, remain constant. This modulation type finds applications in the digital transmission of analog data, such as in audio systems, where analog sound waves are converted into digital pulses.

Working Principle of PAM Modulation

In PAM, each pulse’s height corresponds to the input signal’s value at a given moment. For instance, in an audio CD, sound waves are sampled, and each sample is translated into a pulse with an amplitude reflecting the original audio signal. Pulse amplitude modulators then transmit this data through a digital system, retaining the original analog signal’s information.

Applications of PAM

Audio Processing: PAM is widely used in digital audio systems, allowing analog audio signals to be digitized, stored, and played back with high fidelity.
Telecommunication Systems: PAM is a foundation for digital communication in telephone systems and early Ethernet systems.
Video Transmission: Pulse amplitude modulation is applied in analog TV and early digital video systems to encode image data.

Advantages of PAM

Simplicity: PAM modulators are relatively easy to design and implement.
Robustness to Noise: PAM’s high amplitude levels offer greater immunity to noise, making it suitable for analog-to-digital conversions in noisy environments.

2. Pulse Width Modulation (PWM)

Pulse Width Modulation (PWM) involves adjusting each pulse’s width or duration based on the input signal. This means PWM modulators vary pulse width to encode data, while pulse amplitude and frequency remain constant. PWM is highly efficient, reliable, and flexible, which makes it popular for motor control, LED lighting, and power management.

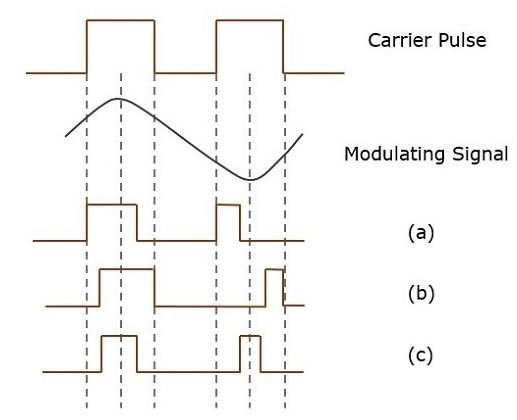

Working Principle of PWM Modulation

The PWM modulator produces a series of pulses where the duty cycle (ratio of pulse width to total period) changes according to the signal. For example, a higher duty cycle corresponds to a higher power level, allowing PWM signals to control output power, speed, or brightness.

Applications of PWM

Motor Control: PWM modulators control electric motors by adjusting speed and torque through the duty cycle.
LED Brightness Control: PWM modulates the brightness of LEDs in displays and lighting systems.
Power Supplies: PWM is fundamental in switch-mode power supplies (SMPS) to regulate voltage and improve energy efficiency.

Advantages of PWM

High Efficiency: PWM minimizes power loss, as devices only conduct during pulse intervals.
Stability and Flexibility: PWM offers stable control over devices without heat buildup, making it ideal for digital control systems.

3. Pulse Position Modulation (PPM)

Pulse Position Modulation (PPM) is a technique where the position (timing) of each pulse is adjusted according to the analog signal. PPM modulators encode information based on pulse timing, while amplitude and width remain constant. This approach is well-suited for applications needing low power consumption and high noise immunity.

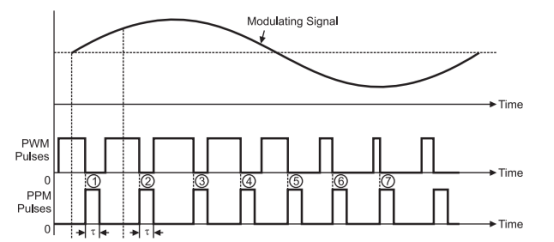

Working Principle of PPM Modulation

A PPM modulator shifts each pulse’s position according to the input signal. This timing alteration encodes data, making PPM effective in environments where power efficiency and reduced interference are priorities.

Applications of PPM

Wireless Communications: PPM is widely used in optical and wireless systems to transmit high-speed data with minimal power.
Radar Systems: PPM modulators are applied in radar technology to enhance detection accuracy and range.
Remote Control Systems: Due to low power requirements, PPM is used in infrared and radio frequency remote controls.

Advantages of PPM

Low Power Consumption: PPM’s minimal energy use makes it ideal for battery-powered systems.
High Noise Immunity: PPM modulators resist interference by relying on timing rather than amplitude or frequency.

4. Pulse Density Modulation (PDM)

Pulse Density Modulation (PDM) modulates the density of pulses over time to represent the analog input. In PDM modulators, pulse width, and amplitude are fixed, but pulse frequency or density varies with the signal’s intensity. PDM modulation is prominent in audio applications, particularly for compact digital audio systems.

Working Principle of PDM Modulation

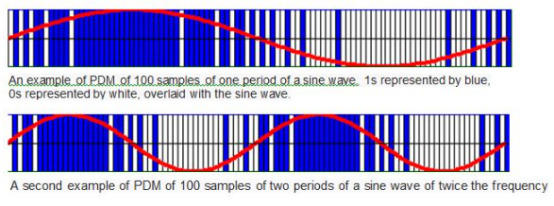

In PDM, a pulse density modulator produces a stream of fixed-width, fixed-amplitude pulses. As the input signal increases, the density of pulses increases, creating a higher average amplitude.

Applications of PDM

Digital Audio Systems: PDM is often used in digital audio converters and low-cost, low-power audio devices.
Data Compression: The modulator’s high-frequency pulses allow PDM to handle compressed data and suppress quantization noise.
Portable Electronics: Due to low power and minimal hardware needs, PDM is ideal for devices like headphones and portable speakers.

Advantages of PDM

Simple Hardware: PDM modulators are easier to implement than many other digital audio systems.
Good Noise Reduction: PDM’s high-frequency output helps filter out quantization noise during audio playback.

5. Pulse Frequency Modulation (PFM)

In Pulse Frequency Modulation (PFM), the frequency of pulses varies based on the input signal, with pulse width and amplitude remaining unchanged. PFM modulation provides robust interference resistance, making it useful in wireless and radar applications.

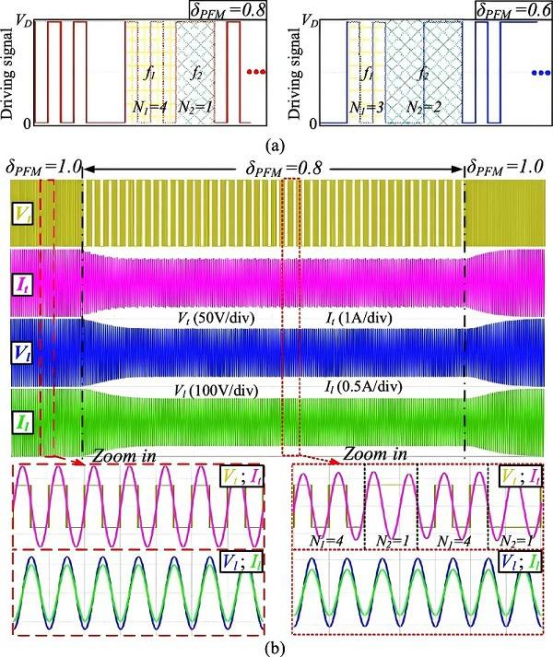

Working Principle of PFM Modulation

A PFM modulator changes pulse frequency to match signal intensity. When the input signal rises, the frequency increases; when it falls, the frequency decreases. This frequency variation conveys information effectively and resists external interference.

Applications of PFM

Wireless Communication: PFM modulators are used to transmit data wirelessly with minimal interference.
Radar Technology: PFM enhances radar’s signal transmission and reception quality, even under high interference.
Instrumentation: PFM modulates sensors and monitoring devices, providing stable data collection in complex environments.

Advantages of PFM

High Interference Resistance: PFM modulation withstands noise better than many other methods.
Energy Efficient: Its low power requirements make PFM ideal for energy-sensitive applications.

6. Pulse Code Modulation (PCM)

Pulse Code Modulation (PCM) digitizes signals by encoding them into binary code, making it one of the most widely used digital modulation techniques. PCM modulation is ideal for digital communications, high-fidelity audio, and video systems.

Working Principle of PCM Modulation

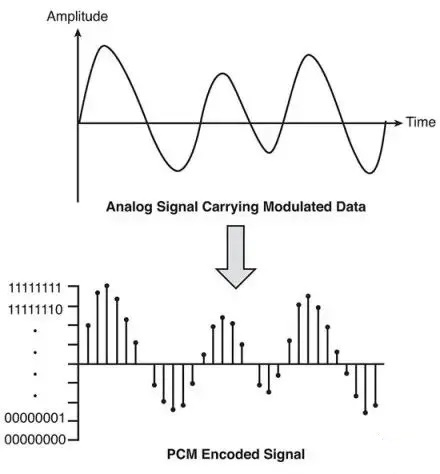

A PCM modulator first quantizes the input signal and then represents each quantized value as a binary code. This approach allows PCM modulators to transmit and process signals in digital format without degradation over long distances.

Applications of PCM

Digital Telecommunication: PCM is used in telephone networks to encode voice signals into binary form for reliable transmission.
Audio and Video Storage: PCM enables high-quality sound and video storage in formats like CDs and DVDs.
Digital Systems: PCM is foundational in digital systems, allowing data to be transmitted over various media without loss of quality.

Advantages of PCM

High Fidelity: PCM offers unmatched sound quality in digital systems.
Noise Immunity: PCM’s binary encoding makes it highly resistant to noise, ensuring quality transmission even over long distances.

In summary, pulse modulation technology is indispensable for modern communication, control systems, and audio applications. From pulse amplitude modulators in audio systems to pulse width modulators in LED lighting, each modulation type offers unique benefits suited to different requirements. As electronics and communication fields advance, pulse modulation will continue to adapt and evolve, supporting next-generation applications and enhancing system performance across industries.
