Unlocking the Potential of DFOS with AOMs

Distributed fiber optic sensing (DFOS) has emerged as a powerful technology with applications spanning various fields, from civil engineering and geophysics to oil and gas exploration. DFOS utilizes optical fibers as distributed sensors to measure physical parameters such as strain, temperature, and pressure along their length. Within the realm of DFOS, distributed acoustic sensing has gained significant prominence, enabling the detection and localization of acoustic vibrations along the fiber.

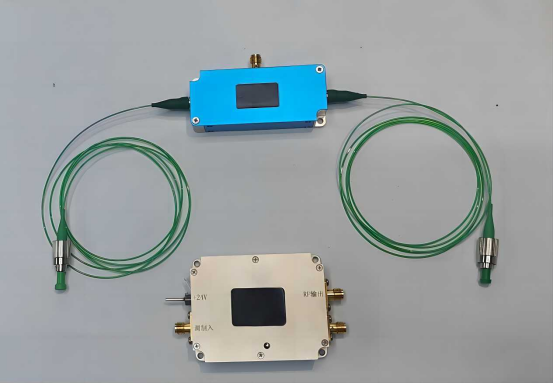

At the heart of many high-performance distributed acoustic sensing systems lies a critical component: the acoustic-optic modulator (AOM). AOMs utilize the interaction between sound waves and light to precisely control the characteristics of laser pulses, a crucial function for interrogating the fiber in distributed acoustic sensing systems. This article will delve into the intricate relationship between AOMs, distributed acoustic sensing, and the broader field of DFOS, exploring their functionalities, advantages, and the latest advancements.

Role of AOMs in Distributed Acoustic Sensing

Distributed acoustic sensing operates by sending short pulses of laser light down an optical fiber. These pulses interact with the surrounding environment, and any vibrations or disturbances cause minute changes in the backscattered light. By analyzing these changes, distributed acoustic sensing systems can detect and locate acoustic events with high spatial resolution.

AOMs play a pivotal role in this process by enabling precise control over the optical pulses. Here’s how:

Pulse Generation: AOMs can be used to generate short, high-energy pulses of light from a continuous-wave laser source. This is achieved by diffracting the laser beam using a sound wave generated by a piezoelectric transducer. By carefully controlling the frequency and amplitude of the sound wave, the AOM can efficiently switch the laser beam on and off, creating the desired pulse shape.
Pulse Modulation: AOMs can also be used to modulate the intensity or frequency of the laser pulses. This is achieved by varying the amplitude or frequency of the sound wave driving the AOM. This modulation capability is crucial for various signal processing techniques employed in distributed acoustic sensing systems, such as phase-sensitive detection and frequency-domain analysis.
Pulse Steering: AOMs can be used to steer the direction of the laser beam. This capability can be utilized for beam steering applications in distributed acoustic sensing systems, although it is less commonly used compared to pulse generation and modulation.

Advantages of Using AOMs in Distributed Acoustic Sensing

High Spatial Resolution: AOMs enable the generation of extremely short pulses, typically in the nanosecond to picosecond range. This high temporal resolution translates directly into high spatial resolution in the distributed acoustic sensing system, allowing for the precise localization of acoustic events.
High Sensitivity: AOMs can be designed to achieve high diffraction efficiency, maximizing the amount of laser power transferred to the desired diffraction order. This high efficiency contributes to the overall sensitivity of the distributed acoustic sensing system, enabling the detection of even weak acoustic signals.
Flexibility: AOMs offer a high degree of flexibility in terms of pulse shaping and modulation. This flexibility allows for the implementation of various signal processing techniques and the adaptation of the distributed acoustic sensing system to different measurement scenarios.
Fast Switching Speeds: AOMs exhibit very fast switching speeds, enabling high data acquisition rates in distributed acoustic sensing systems. This is crucial for real-time monitoring applications where rapid response times are essential.

AOMs in the Broader Context of Distributed Fiber Optic Sensing

While AOMs are particularly crucial in distributed acoustic sensing, their applications extend beyond this specific domain. They play a significant role in various other DFOS techniques, including:

Brillouin Scattering Sensing: Brillouin scattering is a phenomenon where light interacts with acoustic waves within the optical fiber. By analyzing the frequency shift of the backscattered light, it is possible to measure strain and temperature along the fiber. AOMs are used in Brillouin sensing systems to generate and modulate the laser pulses that interrogate the fiber, enabling high-resolution measurements.
Raman Scattering Sensing: Raman scattering is another optical phenomenon that can be used to measure temperature and strain along the fiber. AOMs are employed in Raman sensing systems to generate the excitation pulses and to separate the Raman scattered light from the excitation light.
Strain and Temperature Sensing: In addition to their role in specific techniques like Brillouin and Raman sensing, AOMs are used in general-purpose strain and temperature sensing systems. They enable precise control over the optical pulses used to interrogate the fiber, improving the accuracy and sensitivity of these measurements.

Advancements in AOM Technology for Distributed Fiber Optic Sensing

Continuous research and development efforts are underway to improve the performance and capabilities of AOMs for DFOS applications. Some of the key advancements include:

High-Speed AOMs: The development of high-speed AOMs with faster switching speeds and higher bandwidths is crucial for enabling higher data acquisition rates and improved spatial resolution in distributed acoustic sensing systems.
Broadband AOMs: Broadband AOMs are capable of operating over a wider range of frequencies, which can be beneficial for certain DFOS techniques that require broadband excitation.
Integrated AOMs: Integrated AOMs are fabricated directly on a chip, offering advantages such as reduced size, weight, and power consumption. This miniaturization can lead to more compact and portable DFOS systems.
Acousto-Optic Tunable Filters (AOTFs): AOTFs are a type of AOM that can be used to select specific wavelengths of light. They have applications in wavelength-division multiplexing (WDM) systems, which can be used to increase the data capacity of optical fibers.

Wrap Up

Acoustic-optic modulators play a critical role in enabling high-performance distributed fiber optic sensing, particularly in the domain of Distributed Acoustic Sensing. Their ability to generate, modulate, and steer laser pulses with precision is essential for achieving the high spatial resolution and sensitivity required for accurate measurements.

Continuous advancements in AOM technology, such as the development of high-speed, broadband, and integrated devices, are paving the way for further improvements in DFOS systems. As these technologies continue to evolve, we can expect to see even more sophisticated and versatile DFOS applications emerge in the years to come.
