W-type Acousto-optic Q-switch Driver
The W-type acousto-optic driver is an RF driver that provides supporting functions for acousto-optic Q switch products with driving power less than 70 w. By changing the input conditions of digital modulation and analog modulation, the frequency and width of the pulse and the amplitude of the beam are controlled. Unique manufacturing and packaging technologies enable efficient heat dissipation, reliable operation and optimal performance.
Characteristics of W-type Acousto-optic Q-switch Driver
- Fast response time
- High temperature stability and reliability

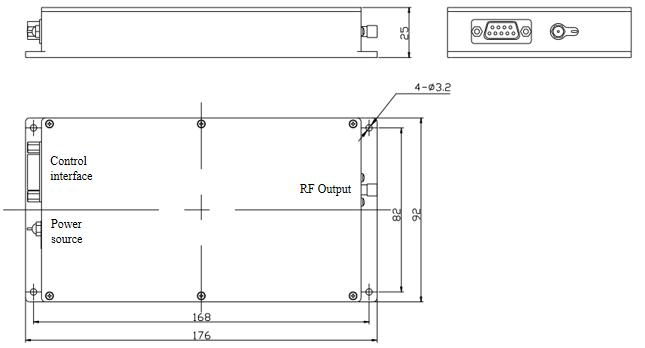

Ordering Information of W-type Acousto-optic Q-switch Driver
| Parameter | Unit | SGQ27-47-W-3DR-R | SGQ41-46-W-1DR-R | ||||||||
| Control interface specifications | |||||||||||
| Interface diagram | 一 |  | |||||||||
| Pin | 一 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | |
| Definition | 一 | Standing wave alarm | – | – | Gnd | Digital modulation | Low power alarm | – | Gnd | Analog modulation | |
| Description | 一 | Low level alarm | – | – | Gnd | High level 3.3-5v;low level 0-0.2V@1k Ω | Low level alarm | – | Gnd | 0-5V@1kΩ | |
| Note | 一 | The unmarked pins are suspended | |||||||||
| Interface type | 一 | DB9 male head | |||||||||
| RF output interface specifications | |||||||||||
| Output signal frequency | MHz | 27.12 | 40.68 | ||||||||
| Frequency stability ratio | ppm | 20 | |||||||||
| Output signal power | W | ≤ 50 | ≤ 40 | ||||||||
| Rising and falling time | ns | < 100 | |||||||||
| Switching ratio | dB | ≥ 40 | |||||||||
| Harmonic suppression ratio | dBc | > 25 | |||||||||
| Signal output standing wave ratio | 一 | ≤ 1.3 | |||||||||
| Whole machine specifications | |||||||||||
| Working mode | 一 | R05 (First pulse suppression mode) | |||||||||
| working voltage | Vdc | 28±1 | 24±1 | ||||||||
| Maximum power consumption | W | 120 | 100 | ||||||||
| Power interface | +Vcc | Through core capacitor (core wire connected to positive, solder pad connected to negative) | |||||||||
